SKU: PD18-CHI

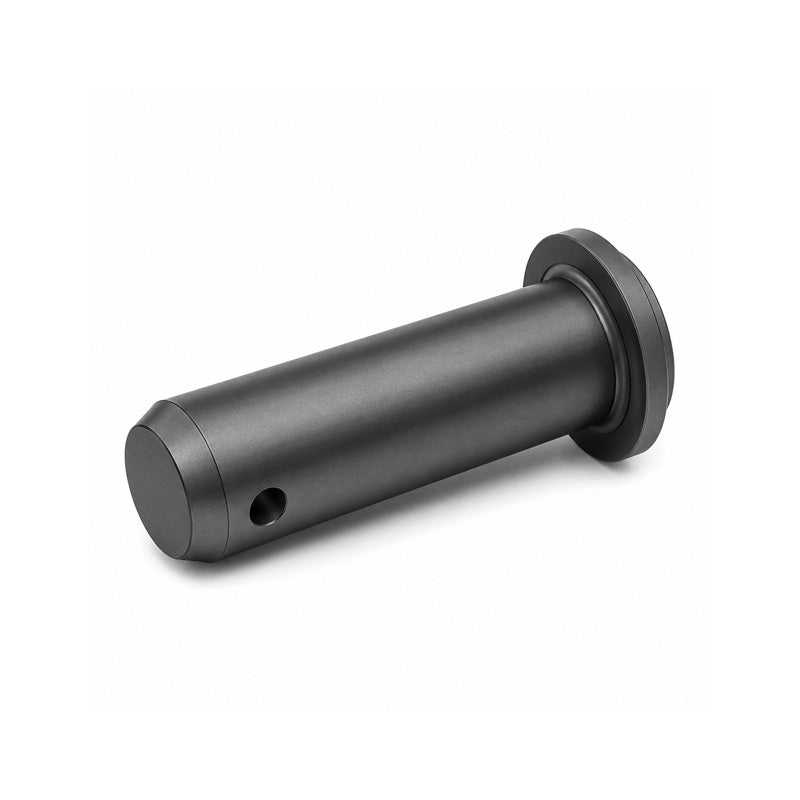

Chiavette PD18 Steel Clevis Pin 18x50mm - Allow 2-3 Days
Chiavette PD18 Steel Clevis Pin 18x50mm - Allow 2-3 Days
Regular price
$3.48
ex VAT
Regular price
Sale price
$3.48
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Chiavette Steel Clevis Pins: Clevis pins facilitate the secure connection and unrestricted rotation of interconnected components. Positioned between the clevis forks, the pin is securely held in place by a retainer inserted into one end. Designed to be used with corresponding retainers and washers (available separately)which ensure a stable attachment. Sold individually, these pins are provided separately from the complete clevis pin, washer, and retainer kit, allowing for customization or serving as spare parts.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 18mm
- Length:
- 50mm
- Material:
- Steel
Technical
Technical
| --- | Dimensions |
|---|---|
| No. | PD18 |
| Material | Steel |
| d | 18mm |
| D | 23mm |
| k | 3mm |
| z | 1.5mm |
| z1 | 2.5mm |
| r | 1mm |
| d2 | 5mm |
| l1 | 43.5mm (+0.5mm) |
| l | 50mm (+0.5mm) |
| Weight each | 0.108kg |
| --- | Use With |
| Washer | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDR20+Washer>PDR20</a> |
| Retainer | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PCD18/20+Retainer>PCD18/20</a> |
