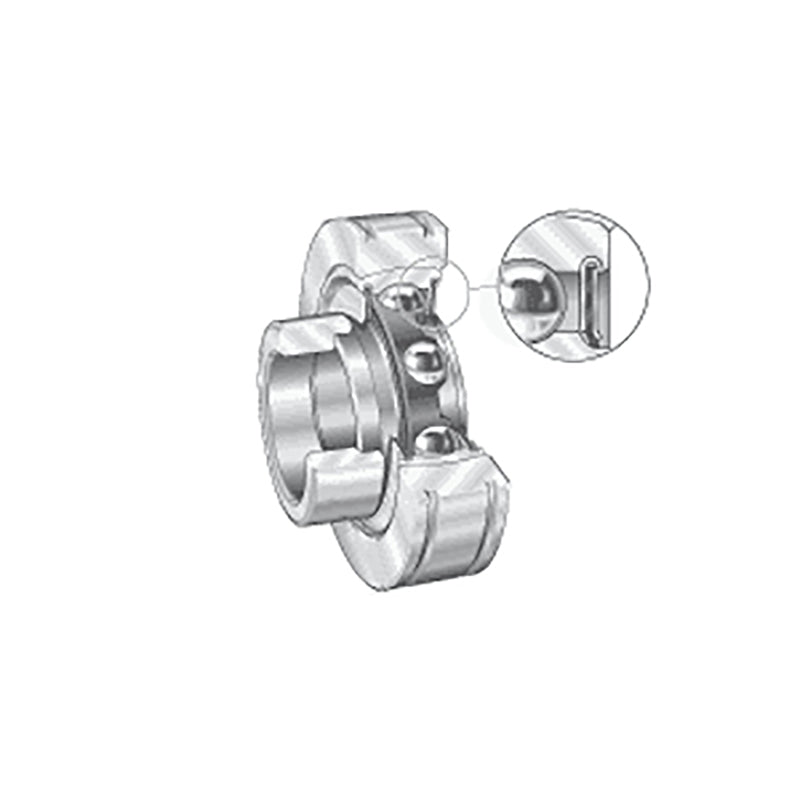

• INA PE35XL Metric Parallel Outer Bearing Insert with Steel Aligning Ring and P Seals and Eccentric Collar 35x80x40mm
  • INA
1 2

SKU: PE35-INA

INA PE35XL Metric Parallel Outer Bearing Insert with Steel Aligning Ring and P Seals and Eccentric Collar 35x80x40mm

INA PE35XL Metric Parallel Outer Bearing Insert with Steel Aligning Ring and P Seals and Eccentric Collar 35x80x40mm
$75.92 ex VAT
$75.92 ex VAT
Sale Sold out

In stock

Price Break
3+ $50.85
5+ $48.00
10+ $47.43
15+ $46.85
20+ $46.28
30+ $45.71
40+ $42.86
50+ $42.28
60+ $41.71
75+ $41.14
100+ $40.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Outside Diameter:
80mm
Width:
40mm
Technical
d 35mm
D 80mm
U 40mm
A 21mm
B1 39mm
b 1.9mm Tolerance: +0.3
C1 14.4mm Tolerance: +0.2
D1 76.8mm Tolerance: -0.5
d3 max 51mm
S1 29.4mm
Dynamic load Cr 25500 N
Static load C0r 15300 N
Designation of bearing RAE35-NPP-B
Weight 0.64 kg
