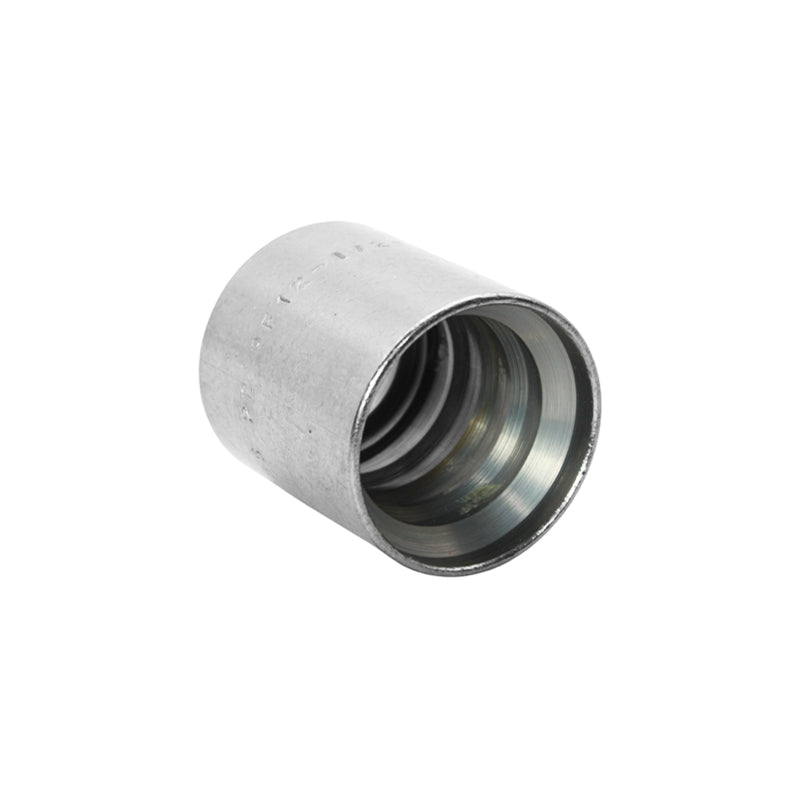

FLEXEQUIP/VOSS PF12 R2A/4SP Zinc Nickel Plated Ferrule Fitting with Skive for Hoses 3/8 inch SAE - Allow 2-3 Days

FLEXEQUIP/VOSS Ferrule Hose Fitting with Skive: These hose fittings are precision-engineered solutions designed to deliver reliable performance and durability in hydraulic systems. Built with decades of expertise, it ensures perfect alignment between fittings and couplings, offering a secure, leak-free connection. With a zinc-nickel base, it provides excellent corrosion resistance, making it suitable for demanding environments. For proper installation, please ensure the ferrule is fully bottomed on the hose, lubricate the insert with light oil, and confirm correct tube placement before swaging to achieve optimal results.

Note: Skiving is the process of removing a layer from the outer cover or inner tube of a hose before crimping, exposing reinforcement layers to allow a more secure fitting attachment.

Benefits: Corrosion resistant, precision engineered, provide perfect alignment

Brand / Quality:

FLEXEQUIP/VOSS - High Quality

Thread Size:

3/8 inch SAE

Outside Diameter:

26mm

Length:

31mm

Type:

PF12
