SKU: PF20-00-501-DURB

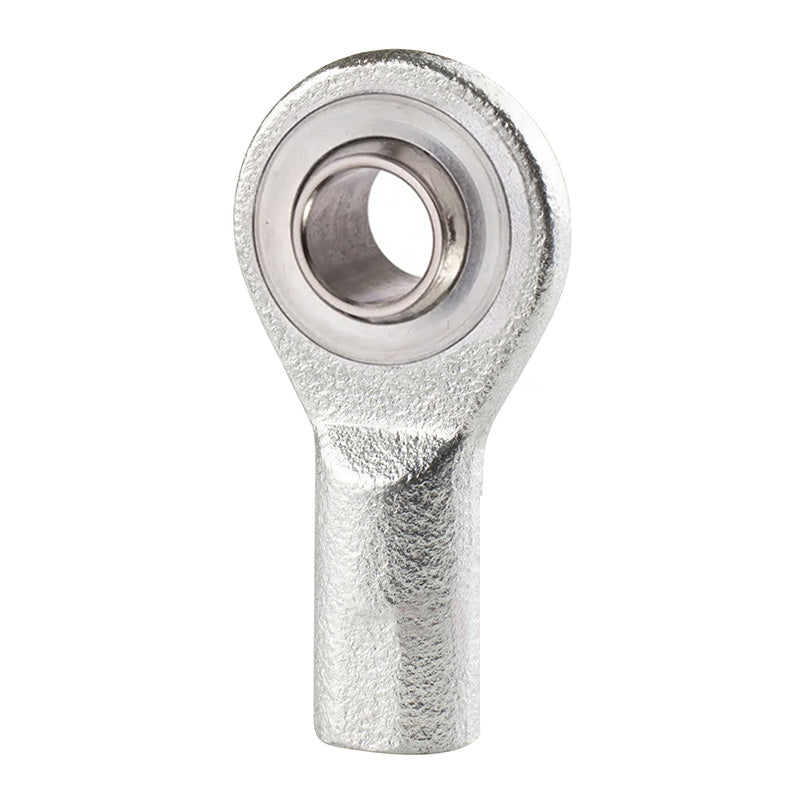

Durbal PF20-00-501 Right Hand Metric Steel Female Rod End M16 Thread

Name: Durbal PF20-00-501 Right Hand Metric Steel Female Rod End M16 Thread
Brand: Durbal
SKU: PF20-00-501-DURB
Price: 196.46 USD
Availability: InStock

$196.46 ex VAT

Sale Sold out

Low stock

Price Break

10+ $131.60

19+ $124.20

29+ $122.72

39+ $121.25

49+ $119.77

74+ $118.29

99+ $110.90

199+ $109.42

249+ $107.94

499+ $106.46

999+ $103.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M16
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 20mm

Technical

Thread Direction	-501 (Right)
d	20mm
G (Thread)	M16
B	20.5mm
C1	15mm
h1	65mm
d1	24mm
d2	48mm
d3	22mm
l3	32mm
l4	89mm
l7	22mm
W	19mm
tilt angle α	6.5 deg
weight	0.223kg
rotational speed limit n max	850 (min-1)
axial factor	2.34 Y
axial factor	2.45 Y0
basic load rating dyn C	6.1 kN
basic load rating stat Co	3 kN
radial clearance CN	10-30 µm
