SKU: PF204.RND.PAIR

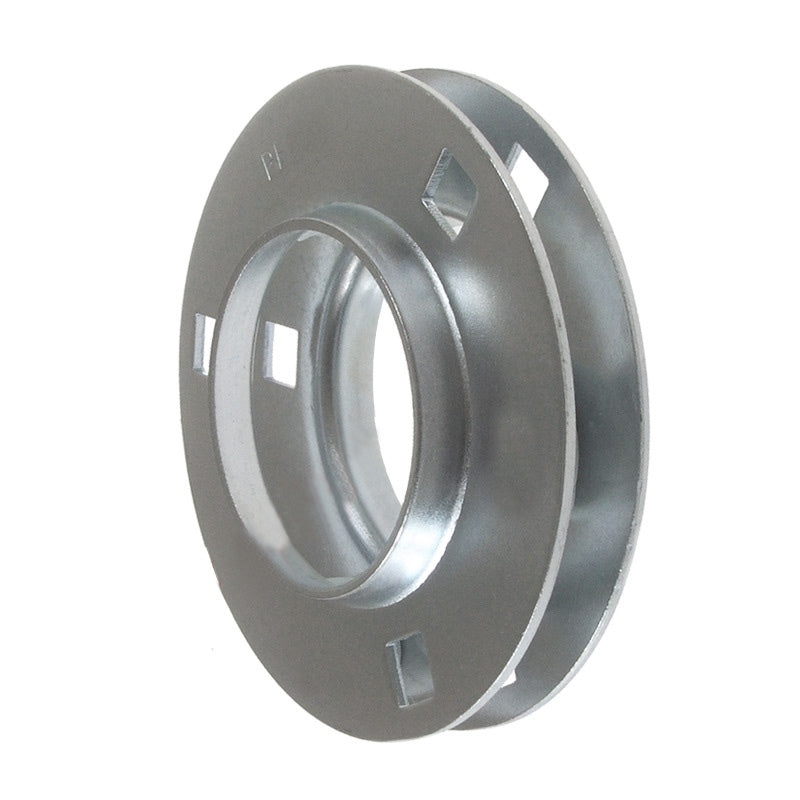

PF204 1 Set of Round 3 Bolt Pressed Steel Bearing Housing accepts 204 Inserts
PF204 1 Set of Round 3 Bolt Pressed Steel Bearing Housing accepts 204 Inserts
Regular price
$4.76
ex VAT
Regular price
Sale price
$4.76
ex VAT
In stock
Price Break
3+
$3.19
4+
$3.01
9+
$2.97
19+
$2.94
49+
$2.90
99+
$2.86
499+
$2.69
999+
$2.65
1999+
$2.61
2999+
$2.58
4999+
$2.51
Quantity
Couldn't load pickup availability
Description
Description
|
3 Bolt Round Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed housing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. An insert is NOT supplied with this assembly. Benefits: Cost effective housing assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Style:
- PF
- Pitch Circle Diameter:
- 71.5mm
Technical
Technical
| a | 90mm |
|---|---|
| e | 71.5mm |
| m | 16mm |
| s | 9mm |
| t | 4mm |
| f | 56mm |
| n | 7.5mm |
| Weight | 0.3 kg |
