SKU: PF30TF-SKF

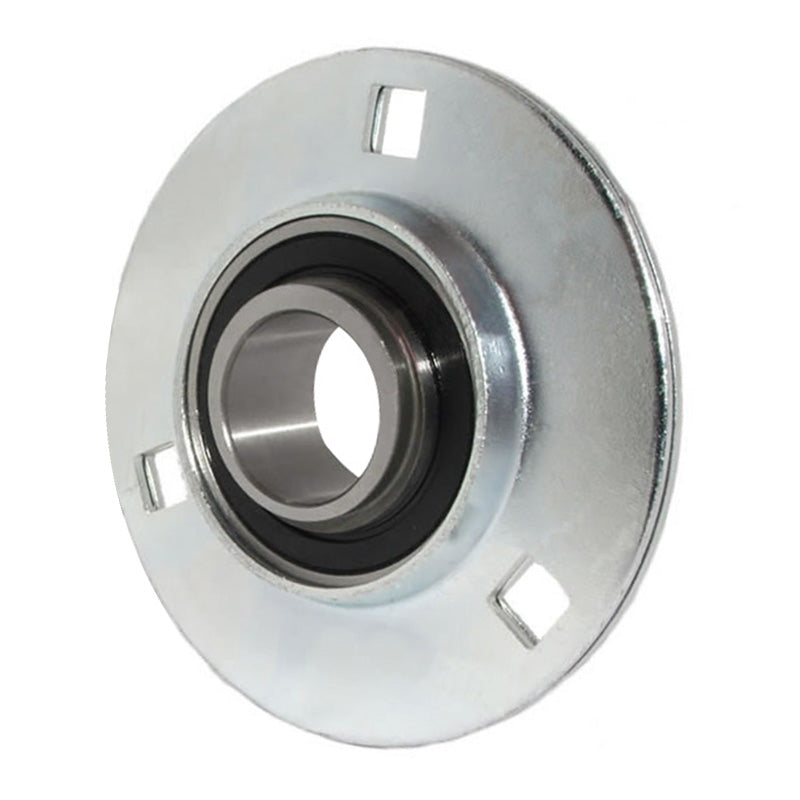

SKF PF30TF Pressed Steel Round Housing with Grub Screw 30mm Insert
SKF PF30TF Pressed Steel Round Housing with Grub Screw 30mm Insert
Out of stock
Description
Description
| SKF Round Flanged Y-bearing Units with Pressed Steel Housing and Grub Screws: These units are designed for simple applications with limited loads and speeds. These round flanged housings are made of pressed steel and have three or four square holes (depending on the size of the housing) for attachment bolts. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- PF
- Pitch Circle Diameter:
- 90.5mm
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 2.5mm |
| A2 | 9.5mm |
| B | 38.1mm |
| Da | 71mm |
| H | 112mm |
| J | 90.5mm |
| N | 10.5mm |
| G | 10mm |
| T | 24.7mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Permissible housing load | 5 kN |
| Weight | 0.58 kg |
