SKU: PFD1.1/4TR-SKF
SKF PFD1-1/4TR Square Cast Housing with Grub Screw 1-1/4 inch Insert
SKF PFD1-1/4TR Square Cast Housing with Grub Screw 1-1/4 inch Insert
Out of stock
Description
Description

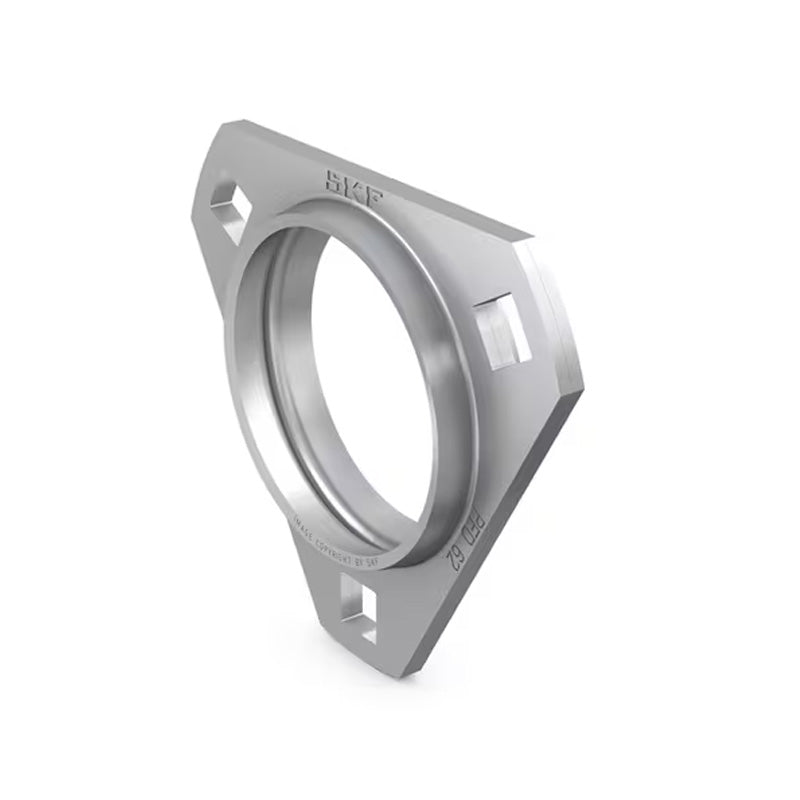

| SKF Triangular Flanged Y-bearing Units with Pressed Steel Housing and Grub Screws: These units are designed for simple applications with limited loads and speeds. These triangular flanged housings are made of pressed steel and have three square holes for attachment bolts. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- PFD
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| A1 | 2.5mm |
| A2 | 10mm |
| B | 42.9mm |
| Da | 81mm |
| H | 122mm |
| H1/L | 45mm |
| J | 100mm |
| N | 11mm |
| G | 10mm |
| T | 27.9mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit | 0.655 kN |
| Permissible housing load radial | 6.5 kN |
| Weight | 0.69 kg |
| Housing | PFD72 |
| Insert | YAR207-104-2RF |
