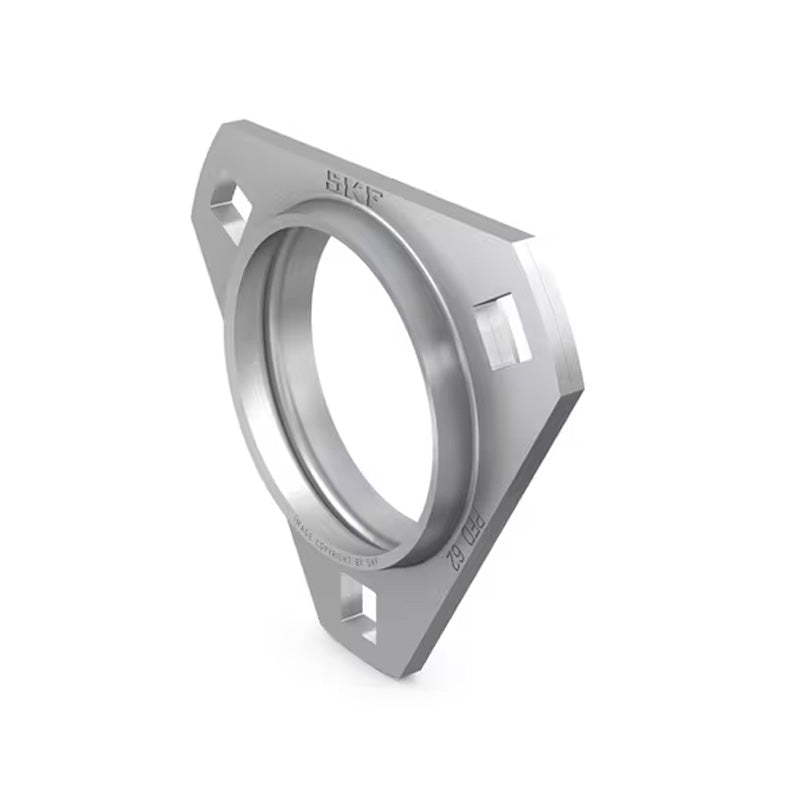

SKF PFD25TF Pressed Steel Triangular Housing with Grub Screw 25mm Insert
SKF PFD25TF Pressed Steel Triangular Housing with Grub Screw 25mm Insert
Out of stock
Description
Description
| SKF Triangular Flanged Y-bearing Units with Pressed Steel Housing and Grub Screws: These units are designed for simple applications with limited loads and speeds. These triangular flanged housings are made of pressed steel and have three square holes for attachment bolts. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- PFD
- Bolt Hole Centres:
- 76mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 2mm |
| A2 | 9mm |
| B | 34.1mm |
| Da | 60mm |
| H | 95mm |
| H1/L | 34mm |
| J | 76mm |
| N | 8.7mm |
| G | 8mm |
| T | 21.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Permissible housing load | 3.6 kN |
| Weight | 0.33 kg |
