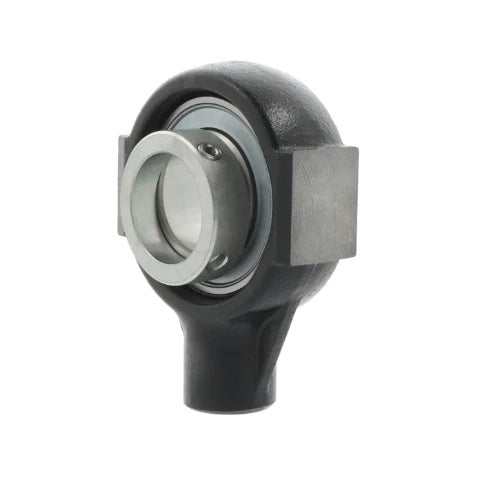

INA PHE30TVFA125.5 Plastic Take Up Unit with Eccentric Collar Insert 30mm Bore

Name: INA PHE30TVFA125.5 Plastic Take Up Unit with Eccentric Collar Insert 30mm Bore
Brand: INA
SKU: PHE30-TV-FA125.5-INA
Price: 88.53 USD
Availability: InStock

$88.53 ex VAT

Sale Sold out

In stock

Price Break

4+ $59.30

9+ $55.97

19+ $55.30

29+ $54.64

39+ $53.97

49+ $53.30

59+ $49.97

69+ $49.31

79+ $48.64

89+ $47.97

99+ $46.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 30mm
Style:: PHE

Technical

d	30mm
L	125mm
M	90mm
A2	34.5mm
B1	35.8mm
d3 max	44mm
K	M16?
L1	76mm
Q	1/4 - 28 UNF?
S1	26.8mm
T	40mm
W	63mm
Mass	0.69 kg
Basic dynamic load rating Cr	20700 N
Basic static load rating Cor	11300 N
Load carrying capacity of housing Cor G	10200 N
Designation of housing	GEH.HE06-TV?
Designation of bearing	GRAE30-NPP-B-FA107/125.5?
Bearing end cap, closed design	KASK06-S-G?
Bearing end caps, open design, with integral rotary shaft seal (available by agreement)	KASK06-S-R-NBR?
