• INA PHE35TVFA125.5 Plastic Take Up Unit with Eccentric Collar Insert 35mm Bore
  • INA
1 2

SKU: PHE35-TV-FA125.5-INA

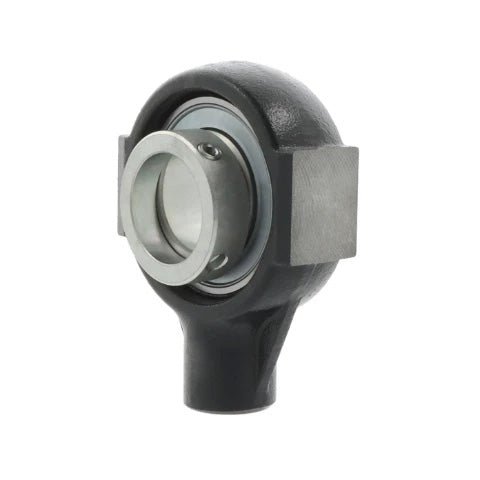

INA PHE35TVFA125.5 Plastic Take Up Unit with Eccentric Collar Insert 35mm Bore

INA PHE35TVFA125.5 Plastic Take Up Unit with Eccentric Collar Insert 35mm Bore
$105.11 ex VAT
$105.11 ex VAT
Sale Sold out

In stock

Price Break
4+ $70.41
9+ $66.45
19+ $65.66
29+ $64.87
39+ $64.08
49+ $63.29
59+ $59.33
69+ $58.54
79+ $57.75
89+ $56.96
99+ $55.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
PHE
Technical
d 35mm
L 125mm
M 90mm
A2 34.5mm
B1 39mm
d3 max 51mm
K M16?
L1 76mm
Q 1/4 - 28 UNF?
S1 29.5mm
T 40mm
W 63mm
Mass 0.79 kg
Basic dynamic load rating Cr 27500 N
Basic static load rating Cor 15300 N
Load carrying capacity of housing Cor G 10700 N
Designation of housing GEH.HE07-TV?
Designation of bearing GRAE35-NPP-B-FA107/125.5?
Bearing end cap, closed design KASK07-S-G?
Bearing end caps, open design, with integral rotary shaft seal (available by agreement) KASK07-S-R-NBR?
