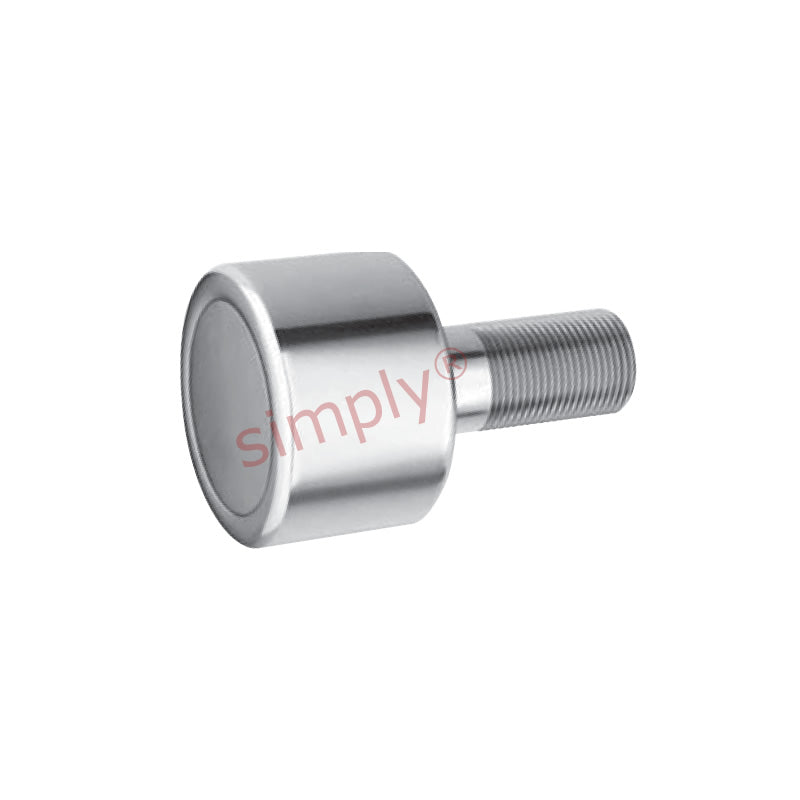

• Major Brand PHR3-1/4 Hex Head Plain Hi-Roller Bearing 3-1/4 inch Outside Diameter
1 1

SKU: PHR-3-1/4

Major Brand PHR3-1/4 Hex Head Plain Hi-Roller Bearing 3-1/4 inch Outside Diameter

Major Brand PHR3-1/4 Hex Head Plain Hi-Roller Bearing 3-1/4 inch Outside Diameter
$190.59 ex VAT
$190.59 ex VAT
Sale Sold out

Equivalent to: PHR-325-A PLR-3-1/4 PCF-3-1/4

In stock

Price Break
3+ $127.66
4+ $120.49
9+ $119.05
19+ $117.62
29+ $116.18
39+ $114.75
49+ $107.58
59+ $106.14
249+ $104.71
499+ $103.28
999+ $100.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Plain Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers.
Benefits: Ideal for use in environments where dust or high moisture is present.
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
82.55mm = 3.25 (3-1/4) inch
Width:
50.8mm = 2 inch
Technical
A 3.25 inch
B 2 inch
C 1.25 inch
D 2.5 inch
E 1.75 inch
Thread class 2A F 1-1/4-12 UNF
G 1.75 inch
S 0.062 inch
Basic dynamic rating 14290 lbs
Dynamic thrust load rating 12000 lbs
Max static capacity 20000 lbs
