Budget PHS10 Right Hand Steel / Bronze Lined Plain Female Rod End 10mm Bore M10x1.5 Thread

Name: Budget PHS10 Right Hand Steel / Bronze Lined Plain Female Rod End 10mm Bore M10x1.5 Thread
Brand: Gen
SKU: PHS10.EU
Price: 7.08 USD
Availability: InStock

$7.08 ex VAT

Sale Sold out

Equivalent to: GIKFR10PB SIKAC10M SF10 FB-M10

In stock

Price Break

10+ $4.75

19+ $4.48

29+ $4.43

39+ $4.37

49+ $4.32

74+ $4.27

99+ $4.00

199+ $3.95

249+ $3.89

499+ $3.84

999+ $3.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M10x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 10mm
Material:: Bronze Lined

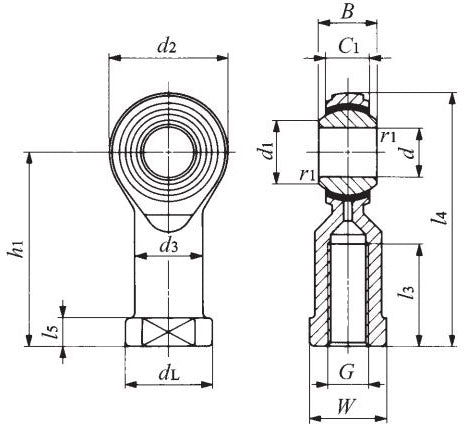

Technical

d	10mm
B	14mm
r1	0.6mm
C1	10.5mm
d1 max	12.9mm
d2	26mm
d3	M10x1.5
h1	43mm
L3	21mm
L4	56mm
L5	6.5mm
d4	15mm
d5	19mm
S	17mm
Ball diameter	3/4 inch
Dynamic load Cr	10 kN
Static load Cor	13.6 kN
Max angle α	13
Weight	0.072 kg
