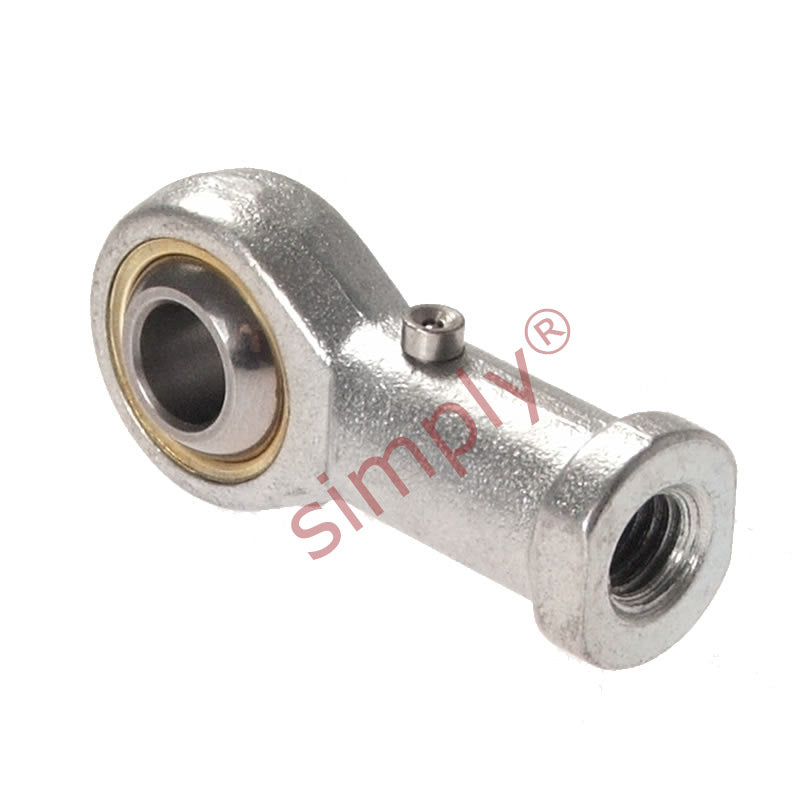

• Budget PHS10L Left Hand Steel / Bronze Lined Plain Female Rod End 10mm Bore M10x1.5 Thread
1 1

SKU: PHS10L.EU

Budget PHS10L Left Hand Steel / Bronze Lined Plain Female Rod End 10mm Bore M10x1.5 Thread

Budget PHS10L Left Hand Steel / Bronze Lined Plain Female Rod End 10mm Bore M10x1.5 Thread
$7.44 ex VAT
$7.44 ex VAT
Sale Sold out

Equivalent to: SILKAC10M FBL-M10

In stock

Price Break
10+ $4.98
19+ $4.70
29+ $4.65
39+ $4.59
49+ $4.54
74+ $4.48
99+ $4.20
199+ $4.14
249+ $4.09
499+ $4.03
999+ $3.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M10x1.5
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
10mm
Material:
Bronze Lined
Technical
d 10mm
B 14mm
r1 0.6mm
C1 10.5mm
d1 max 12.9mm
d2 26mm
d3 M10x1.5
h1 43mm
L3 21mm
L4 56mm
L5 6.5mm
d4 15mm
d5 19mm
S 17mm
Ball diameter 3/4 inch
Dynamic load Cr 10 kN
Static load Cor 13.6 kN
Max angle α 13
Weight 0.072 kg
