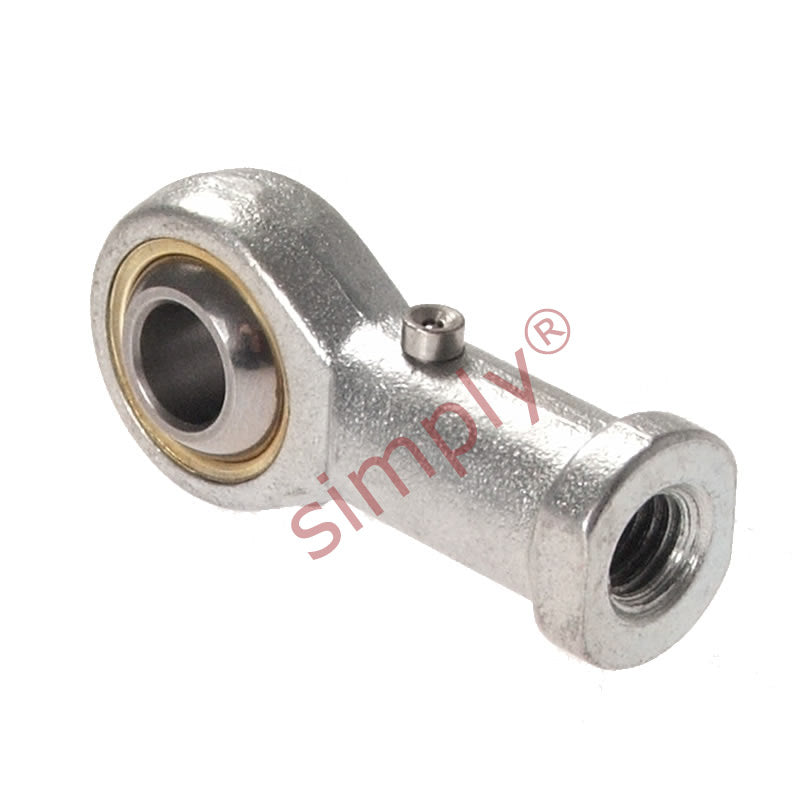

• Budget PHS12/F2 Right Hand Steel / Bronze Lined Plain Female Rod End 12mm Bore M12x1.25 Thread
1 1

SKU: PHS12/F2.EU

Budget PHS12/F2 Right Hand Steel / Bronze Lined Plain Female Rod End 12mm Bore M12x1.25 Thread

Budget PHS12/F2 Right Hand Steel / Bronze Lined Plain Female Rod End 12mm Bore M12x1.25 Thread
$10.60 ex VAT
$10.60 ex VAT
Sale Sold out

In stock

Price Break
10+ $7.10
19+ $6.70
29+ $6.62
39+ $6.54
49+ $6.46
74+ $6.38
99+ $5.98
199+ $5.90
249+ $5.82
499+ $5.74
999+ $5.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M12x1.25
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
12mm
Material:
Bronze Lined
Technical
d 12mm
B 16mm
r1 0.6mm
C1 12mm
d1 max 15.4mm
d2 30mm
d3 M12x1.25
h1 50mm
L3 24mm
L4 65mm
L5 6.5mm
d4 17.5mm
d5 22mm
S 19mm
Ball diameter 7/8 inch
Dynamic load Cr 13.3 kN
Static load Cor 17.3 kN
Max angle α 13
Weight 0.107 kg
