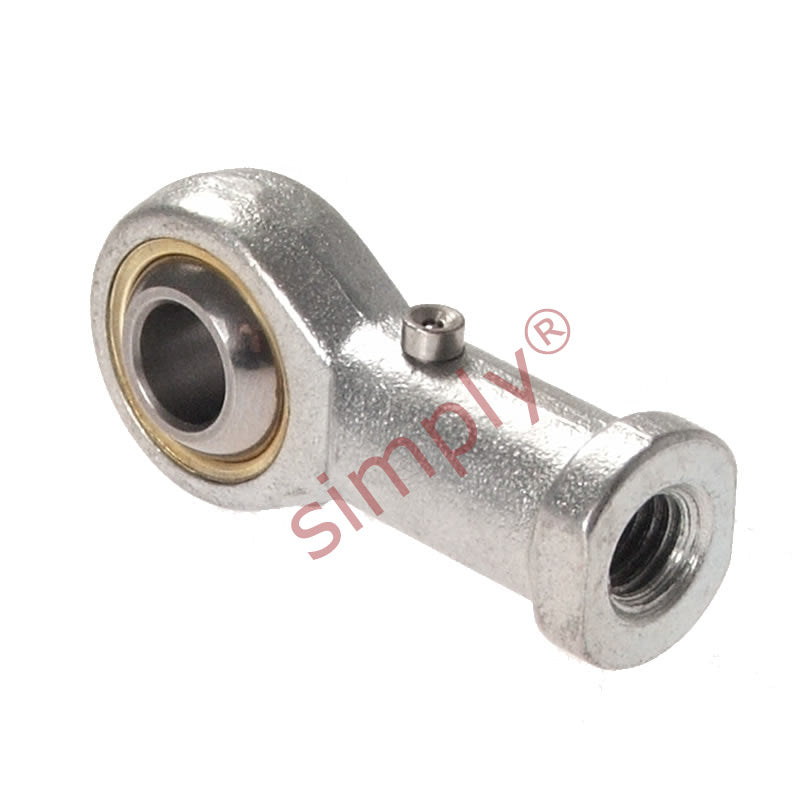

• Budget PHS12L Left Hand Steel / Bronze Lined Plain Female Rod End 12mm Bore M12x1.75 Thread
1 1

SKU: PHS12L.EU

Budget PHS12L Left Hand Steel / Bronze Lined Plain Female Rod End 12mm Bore M12x1.75 Thread

Budget PHS12L Left Hand Steel / Bronze Lined Plain Female Rod End 12mm Bore M12x1.75 Thread
$8.84 ex VAT
$8.84 ex VAT
Sale Sold out

Equivalent to: SILKAC12M FBL-M12

In stock

Price Break
10+ $5.92
19+ $5.58
29+ $5.52
39+ $5.45
49+ $5.38
74+ $5.32
99+ $4.98
199+ $4.92
249+ $4.85
499+ $4.79
999+ $4.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M12x1.75
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
12mm
Material:
Bronze Lined
Technical
d 12mm
B 16mm
r1 0.6mm
C1 12mm
d1 max 15.4mm
d2 30mm
d3 M12x1.75
h1 50mm
L3 24mm
L4 65mm
L5 6.5mm
d4 17.5mm
d5 22mm
S 19mm
Ball diameter 7/8 inch
Dynamic load Cr 13.3 kN
Static load Cor 17.3 kN
Max angle α 13
Weight 0.107 kg
