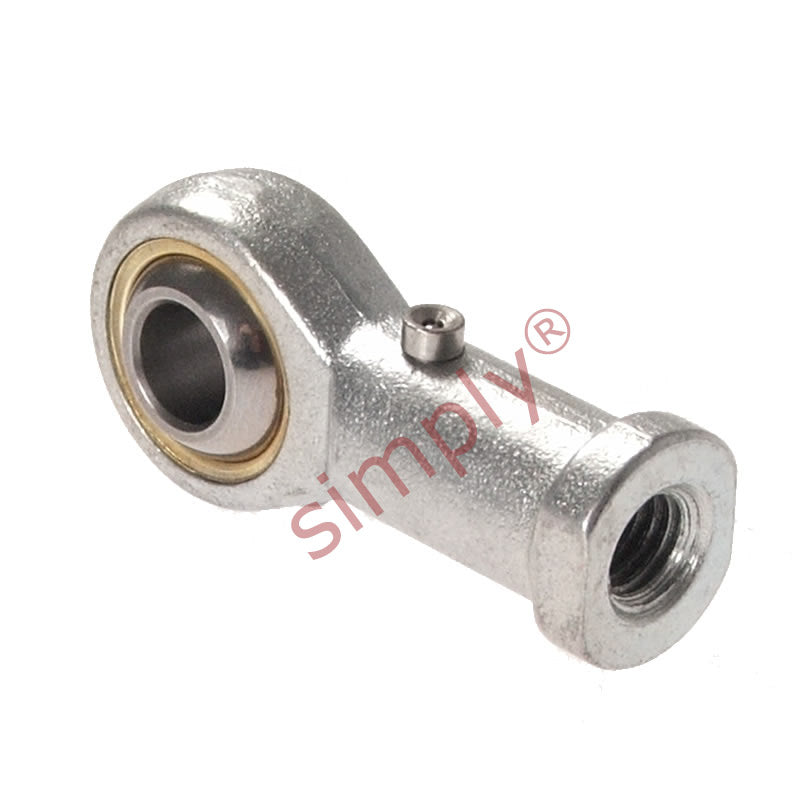

• Budget PHS14 Right Hand Steel / Bronze Lined Plain Female Rod End 14mm Bore M14x2 Thread
1 1

SKU: PHS14.EU

Budget PHS14 Right Hand Steel / Bronze Lined Plain Female Rod End 14mm Bore M14x2 Thread

Budget PHS14 Right Hand Steel / Bronze Lined Plain Female Rod End 14mm Bore M14x2 Thread
$10.28 ex VAT
$10.28 ex VAT
Sale Sold out

Equivalent to: GIKFR14PB SIKAC14M SF14 FB-M14

In stock

Price Break
10+ $6.89
19+ $6.50
29+ $6.43
39+ $6.35
49+ $6.27
74+ $6.19
99+ $5.81
199+ $5.73
249+ $5.65
499+ $5.58
999+ $5.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M14x2
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
14mm
Material:
Bronze Lined
Technical
d 14mm
B 19mm
r1 0.6mm
C1 13.5mm
d1 max 16.8mm
d2 34mm
d3 M14x2
h1 57mm
L3 27mm
L4 74mm
L5 8mm
d4 20mm
d5 25mm
S 22mm
Ball diameter 1 inch
Dynamic load Cr 17.1 kN
Static load Cor 21.3 kN
Max angle α 16
Weight 0.16 kg
