SKU: PHS16EC

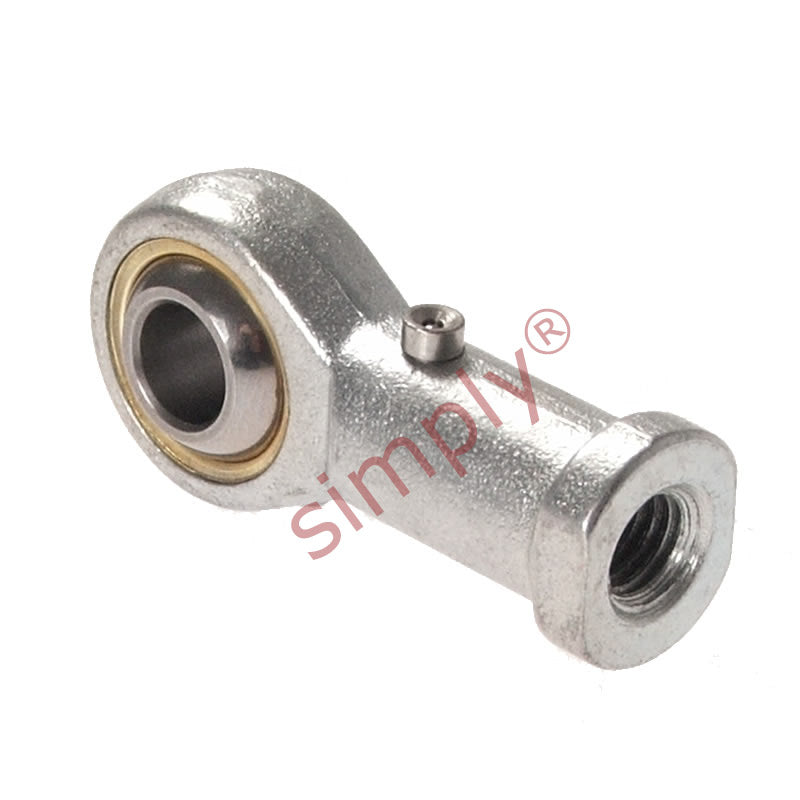

Budget PHS16 Right Hand Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x2 Thread
- Regular price
- $66.05 ex VAT
- Sale price
- $66.05
- Regular price
-
In stock
Quantity Price Breaks
10
$58.78
19
$55.48
29
$54.82
39
$54.16
49
$53.50
74
$52.84
99
$49.54
199
$48.88
249
$48.22
499
$47.56
999
$46.24
SKU:
PHS16EC
Budget PHS16 Right Hand Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x2 Thread
- Regular price
- $66.05 ex VAT
- Sale price
- $66.05
- Regular price
-
Description
|
Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 16mm |
| B | = | 21mm |
| r1 | = | 0.6mm |
| C1 | = | 15mm |
| d1 max | = | 19.3mm |
| d2 | = | 38mm |
| d3 | = | M16x2 |
| h1 | = | 64mm |
| L3 | = | 33mm |
| L4 | = | 83mm |
| L5 | = | 8mm |
| d4 | = | 22mm |
| d5 | = | 27mm |
| S | = | 22mm |
| Ball diameter | = | 1-1/8 inch |
| Dynamic load Cr | = | 21.4 kN |
| Static load Cor | = | 25.9 kN |
| Max angle & | = | alpha |
| = | 15 | |
| Weight | = | 0.21 kg |
