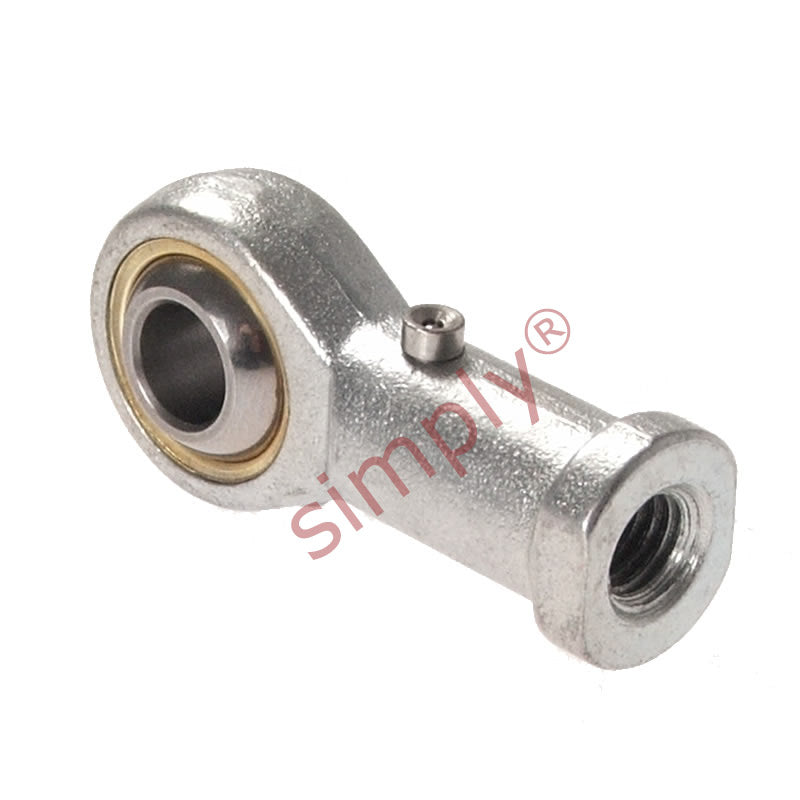

• Budget PHS25L Left Hand Steel / Bronze Lined Plain Female Rod End 25mm Bore M24x2 Thread
1 1

SKU: PHS25L.EU

Budget PHS25L Left Hand Steel / Bronze Lined Plain Female Rod End 25mm Bore M24x2 Thread

Budget PHS25L Left Hand Steel / Bronze Lined Plain Female Rod End 25mm Bore M24x2 Thread
$59.84 ex VAT
$59.84 ex VAT
Sale Sold out

Equivalent to: SILKAC25M FBL-M25

In stock

Price Break
10+ $40.08
19+ $37.83
29+ $37.38
39+ $36.93
49+ $36.48
74+ $36.03
99+ $33.78
199+ $33.33
249+ $32.88
499+ $32.43
999+ $31.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M24x2
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
25mm
Material:
Bronze Lined
Technical
d 25mm
B 31mm
r1 0.6mm
C1 22mm
d1 max 29.5mm
d2 60mm
d3 M24x2
h1 94mm
L3 48mm
L4 124mm
L5 12mm
d4 33.5mm
d5 42mm
S 36mm
Ball diameter 1-11/16 inch
Dynamic load Cr 47.1 kN
Static load Cor 74.1 kN
Max angle α 15
Weight 0.75 kg
