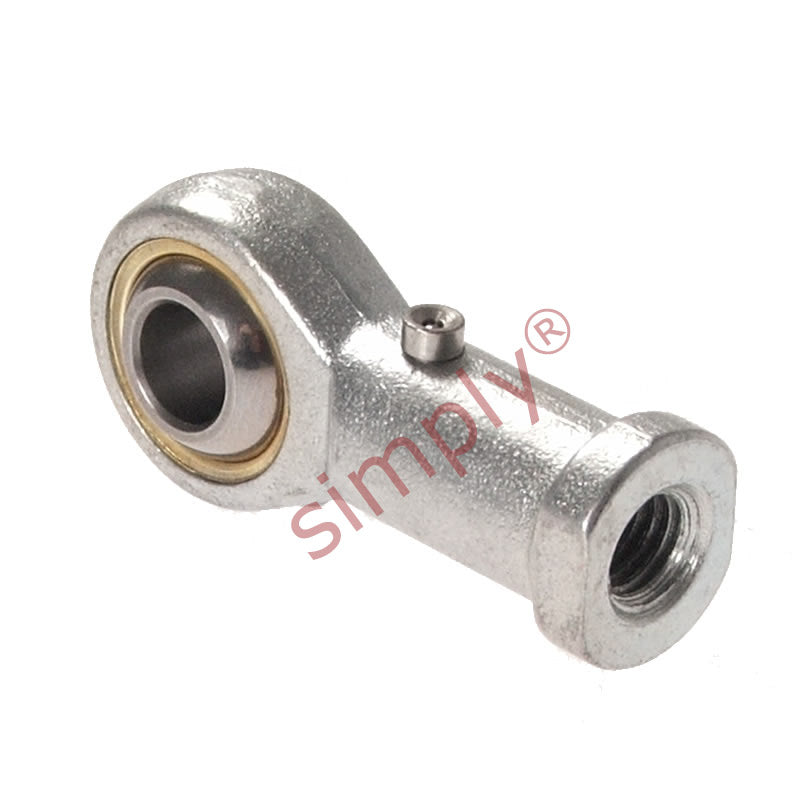

• Budget PHS28 Right Hand Steel / Bronze Lined Plain Female Rod End 28mm Bore M27x2 Thread
1 1

SKU: PHS28.EU

Budget PHS28 Right Hand Steel / Bronze Lined Plain Female Rod End 28mm Bore M27x2 Thread

Budget PHS28 Right Hand Steel / Bronze Lined Plain Female Rod End 28mm Bore M27x2 Thread
$32.02 ex VAT
$32.02 ex VAT
Sale Sold out

In stock

Price Break
10+ $21.45
19+ $20.24
29+ $20.00
39+ $19.76
49+ $19.52
74+ $19.28
99+ $18.07
199+ $17.83
249+ $17.59
499+ $17.35
999+ $16.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M27x2
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
28mm
Material:
Bronze Lined
Technical
d 28mm
B 35mm
r1 0.6mm
C1 25mm
d1 max 32.29mm
d2 66mm
d3 M27x2
h1 103mm
L3 53mm
L4 136mm
L5 12mm
d4 37mm
d5 46mm
S 41mm
Ball diameter 1-7/8 inch
Dynamic load Cr 59.5 kN
Static load Cor 88.7 kN
Max angle α 15
Weight 0.95 kg
