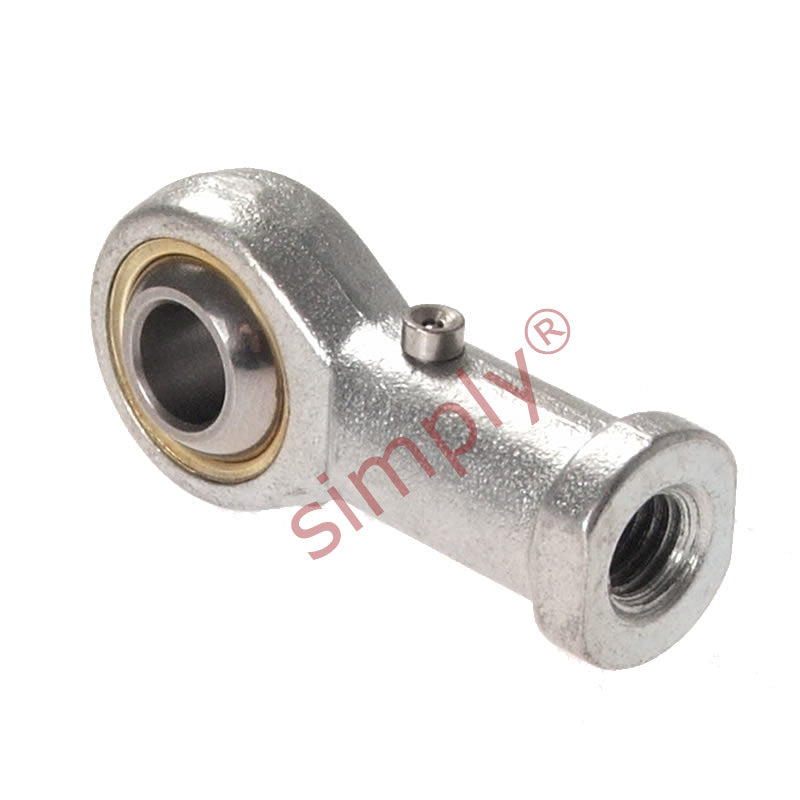

• Budget PHS30L Left Hand Steel / Bronze Lined Plain Female Rod End 30mm Bore M30x2 Thread
1 1

SKU: PHS30L.EU

Budget PHS30L Left Hand Steel / Bronze Lined Plain Female Rod End 30mm Bore M30x2 Thread

Budget PHS30L Left Hand Steel / Bronze Lined Plain Female Rod End 30mm Bore M30x2 Thread
$82.84 ex VAT
$82.84 ex VAT
Sale Sold out

Equivalent to: SILKAC30M FBL-M30

In stock

Price Break
10+ $55.49
19+ $52.37
29+ $51.75
39+ $51.12
49+ $50.50
74+ $49.88
99+ $46.76
199+ $46.14
249+ $45.51
499+ $44.89
999+ $43.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M30x2
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
30mm
Material:
Bronze Lined
Technical
d 30mm
B 37mm
r1 0.6mm
C1 25mm
d1 max 34.8mm
d2 70mm
d3 M30x2
h1 110mm
L3 56mm
L4 145mm
L5 15mm
d4 40mm
d5 50mm
S 41mm
Ball diameter 2 inch
Dynamic load Cr 63.5 kN
Static load Cor 94 kN
Max angle α 17
Weight 1.13 kg
