• Budget PHS8 Right Hand Steel / Bronze Lined Plain Female Rod End 8mm Bore M8x1.25 Thread
1 1

SKU: PHS8.EU

Budget PHS8 Right Hand Steel / Bronze Lined Plain Female Rod End 8mm Bore M8x1.25 Thread

Budget PHS8 Right Hand Steel / Bronze Lined Plain Female Rod End 8mm Bore M8x1.25 Thread
$6.32 ex VAT
$6.32 ex VAT
Sale Sold out

Equivalent to: GIKFR8PB SIKAC8M SF8 FB-M08

In stock

Price Break
10+ $4.23
19+ $3.99
29+ $3.95
39+ $3.90
49+ $3.85
74+ $3.80
99+ $3.57
199+ $3.52
249+ $3.47
499+ $3.42
999+ $3.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

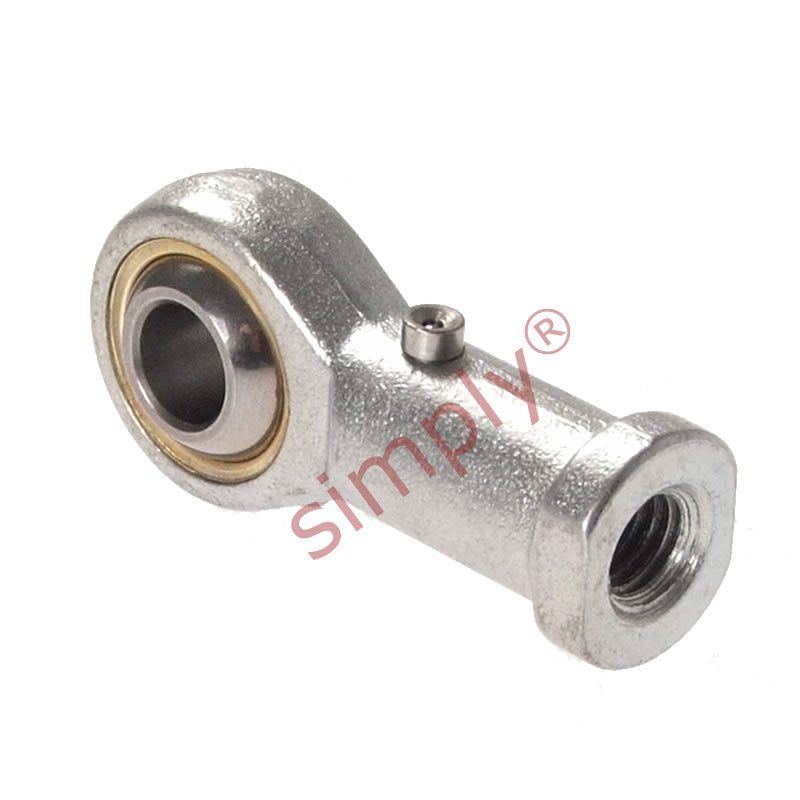

Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M8x1.25
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
8mm
Material:
Bronze Lined
Technical
d 8mm
B 12mm
r1 0.3mm
C1 9mm
d1 max 10.3mm
d2 22mm
d3 M8x1.25
h1 36mm
L3 17mm
L4 47mm
L5 5mm
d4 [12.5mm
d5 16mm
S 14mm
Ball diameter 5/8 inch
Dynamic load Cr 7.1 kN
Static load Cor 10.4 kN
Max angle α 14
Weight 0.043 kg
