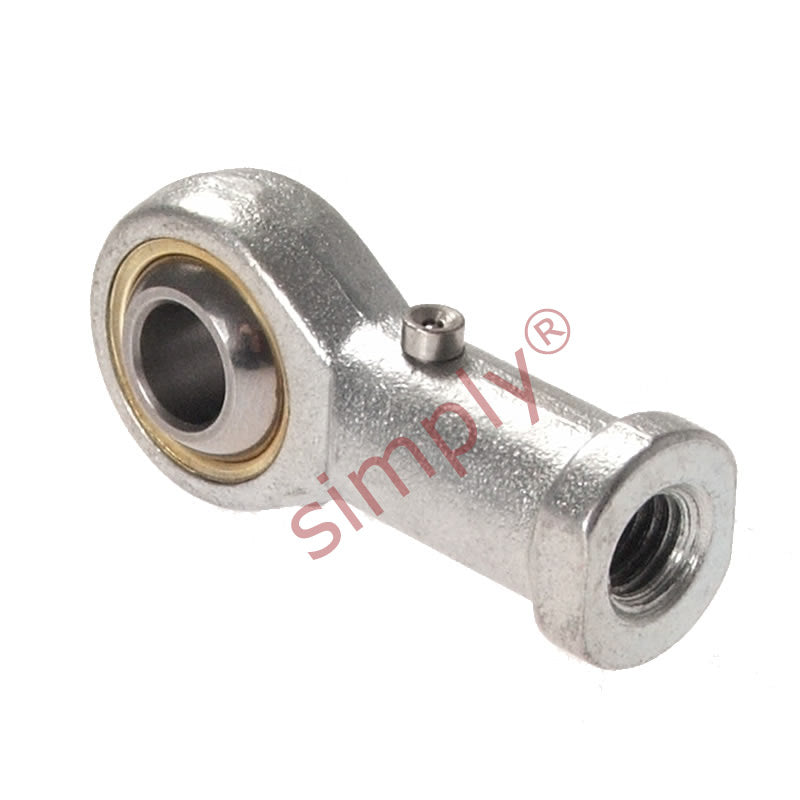

Budget PHS8L Left Hand Steel / Bronze Lined Plain Female Rod End 8mm Bore M8x1.25 Thread

Name: Budget PHS8L Left Hand Steel / Bronze Lined Plain Female Rod End 8mm Bore M8x1.25 Thread
Brand: Gen
SKU: PHS8L.EU
Price: 6.63 USD
Availability: InStock

$6.63 ex VAT

Sale Sold out

Equivalent to: SILKAC8M FBL-M08

In stock

Price Break

10+ $4.44

19+ $4.19

29+ $4.14

39+ $4.09

49+ $4.04

74+ $3.99

99+ $3.74

199+ $3.69

249+ $3.64

499+ $3.60

999+ $3.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M8x1.25
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 8mm
Material:: Bronze Lined

Technical

d	8mm
B	12mm
r1	0.3mm
C1	9mm
d1 max	10.3mm
d2	22mm
d3	M8x1.25
h1	36mm
L3	17mm
L4	47mm
L5	5mm
d4	[12.5mm
d5	16mm
S	14mm
Ball diameter	5/8 inch
Dynamic load Cr	7.1 kN
Static load Cor	10.4 kN
Max angle α	14
Weight	0.043 kg
