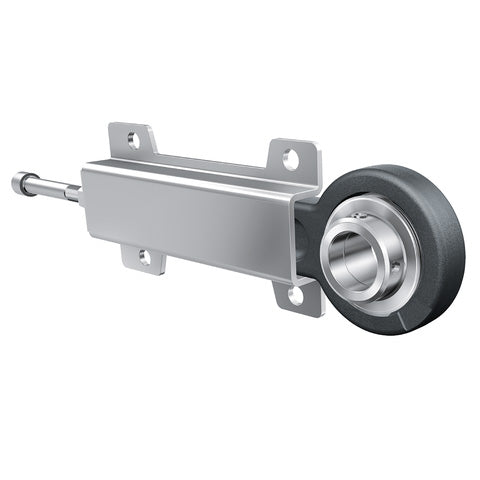

INA PHUSE30XL Sheet Steel Take Up Unit with Eccentric Collar Insert 30mm Bore

Name: INA PHUSE30XL Sheet Steel Take Up Unit with Eccentric Collar Insert 30mm Bore
Brand: INA
SKU: PHUSE30-XL-INA
Price: 101.99 USD
Availability: InStock

$101.99 ex VAT

Sale Sold out

In stock

Price Break

4+ $68.32

9+ $64.48

19+ $63.71

29+ $62.94

39+ $62.18

49+ $61.41

59+ $57.57

69+ $56.80

79+ $56.03

89+ $55.27

99+ $53.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 30mm
Style:: PHUSE
Bolt Hole Centres:: 140mm

Technical

d	30mm
H	103mm
A	28mm
A2	22mm
B1	35.8mm
d3 max	44mm
F	20mm
G	65mm
H1	52mm (Tolerance: +/-0.15)
J	140mm
J1	80mm
K1	M12
L1	187mm
L1	50mm
N	11.5mm
Q	M6
S	4mm
S1	26.8mm
V	88mm
Mass	2.22 kg
Load carrying capacity of housing Cor G	11300 N
Basic dynamic load rating Cr	20700 N
Basic static load rating Cor	11300 N
Designation of housing	HUE06 / HUSE07
Designation of bearing	GRAE30-XL-NPP-B
