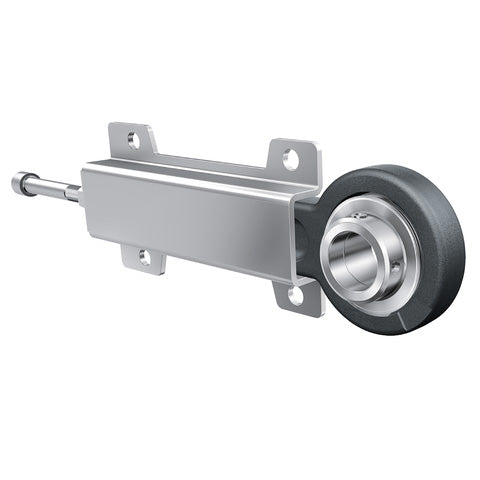

INA PHUSE35XL Sheet Steel Take Up Unit with Eccentric Collar Insert 35mm Bore

Name: INA PHUSE35XL Sheet Steel Take Up Unit with Eccentric Collar Insert 35mm Bore
Brand: INA
SKU: PHUSE35-XL-INA
Price: 119.66 USD
Availability: InStock

$119.66 ex VAT

Sale Sold out

In stock

Price Break

4+ $80.15

9+ $75.65

19+ $74.75

29+ $73.85

39+ $72.95

49+ $72.05

59+ $67.55

69+ $66.64

79+ $65.74

89+ $64.84

99+ $63.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 35mm
Style:: PHUSE
Bolt Hole Centres:: 140mm

Technical

d	35mm
H	103mm
A	28mm
A2	22mm
B1	39mm
d3 max	55mm
F	20mm
G	65mm
H1	52mm (Tolerance: +/-0.15)
J	140mm
J1	80mm
K1	M12
L1	187mm
L1	50mm
N	11.5mm
Q	M6
S	4mm
S1	29.5mm
V	98mm
Mass	2.46 kg
Load carrying capacity of housing Cor G	15300 N
Basic dynamic load rating Cr	27500 N
Basic static load rating Cor	15300 N
Designation of housing	HUE07 / HUSE07
Designation of bearing	GRAE35-XL-NPP-B
