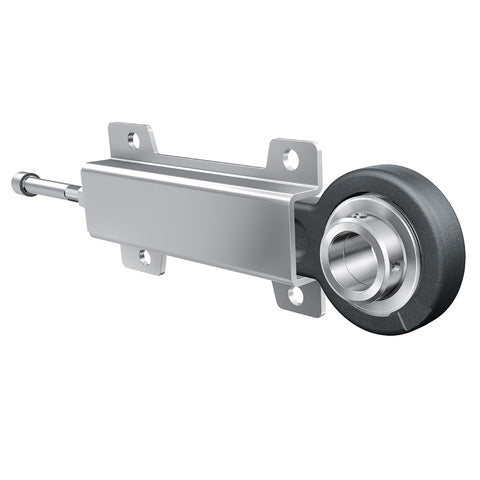

INA PHUSE40XL Sheet Steel Take Up Unit with Eccentric Collar Insert 40mm Bore

Name: INA PHUSE40XL Sheet Steel Take Up Unit with Eccentric Collar Insert 40mm Bore
Brand: INA
SKU: PHUSE40-XL-INA
Price: 142.78 USD
Availability: InStock

$142.78 ex VAT

Sale Sold out

In stock

Price Break

4+ $95.64

9+ $90.27

19+ $89.19

29+ $88.12

39+ $87.04

49+ $85.97

59+ $80.60

69+ $79.52

79+ $78.45

89+ $77.37

99+ $75.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 40mm
Style:: PHUSE
Bolt Hole Centres:: 180mm

Technical

d	40mm
H	130mm
A	36mm
A2	30mm
B1	43.8mm
d3 max	58mm
F	20mm
G	80mm
H1	60mm (Tolerance: +/-0.15)
J	180mm
J1	100mm
K1	M16
L1	256mm
L1	60mm
N	14mm
Q	M6
S	4mm
S1	32.8mm
V	108mm
Mass	4.89 kg
Load carrying capacity of housing Cor G	19800 N
Basic dynamic load rating Cr	34500 N
Basic static load rating Cor	19800 N
Designation of housing	HUE08 / HUSE10
Designation of bearing	GRAE40-XL-NPP-B
