SKU: PHUSE50-XL-N-INA

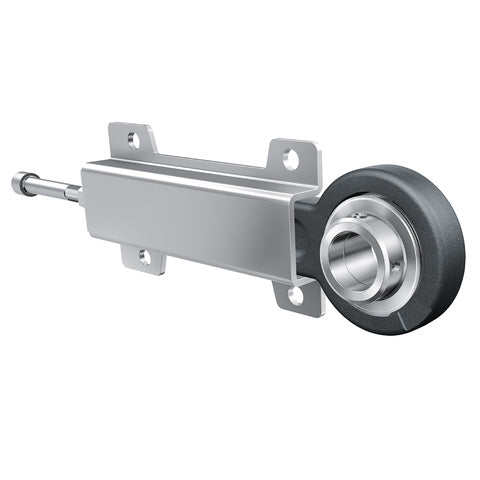

INA PHUSE50XLN Sheet Steel Take Up Unit with Eccentric Collar Insert 50mm Bore

Name: INA PHUSE50XLN Sheet Steel Take Up Unit with Eccentric Collar Insert 50mm Bore
Brand: INA
SKU: PHUSE50-XL-N-INA
Price: 169.99 USD
Availability: InStock

$169.99 ex VAT

Sale Sold out

In stock

Price Break

4+ $113.87

9+ $107.47

19+ $106.19

29+ $104.91

39+ $103.63

49+ $102.35

59+ $95.96

69+ $94.68

79+ $93.40

89+ $92.12

99+ $89.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 50mm
Style:: PHUSE
Bolt Hole Centres:: 180mm

Technical

d	50mm
H	130mm
A	36mm
A2	30mm
B1	43.8mm
d3 max	69mm
F	20mm
G	80mm
H1	60mm (Tolerance: +/-0.15)
J	180mm
J1	100mm
K1	M16
L1	256mm
L1	60mm
N	14mm
Q	M6
S	4mm
S1	32.8mm
V	120mm
Mass	5.25 kg
Load carrying capacity of housing Cor G	23200 N
Basic dynamic load rating Cr	37500 N
Basic static load rating Cor	23200 N
Designation of housing	HUE10 / HUSE10
Designation of bearing	GRAE50-XL-NPP-B
Bearing end cap, closed design (to be ordered seperately)	KASK10
