SKU: PI20SS+SS.D1400-020

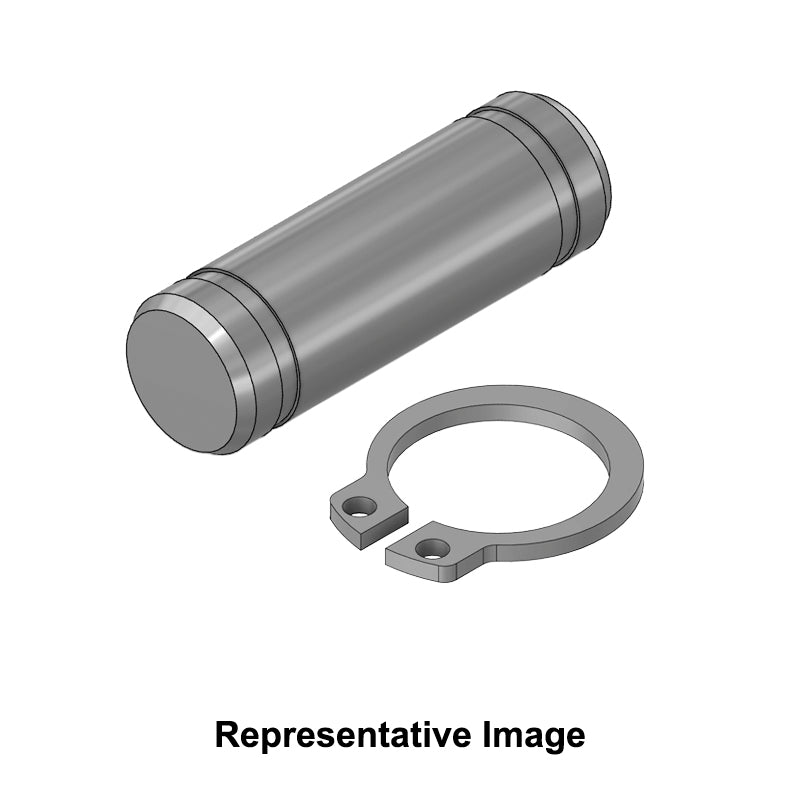

Chiavette PI20SS Stainless Steel Clevis Pin and Circlip 20x48mm - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
Chiavette Stainless Steel Clevis Pin with Circlip: This kit includes a stainless steel clevis pin and a matching stainless steel circlip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included circlip that fits within the groove of the pin on one end. Manufactured in high-quality stainless steel, this clevis pin and circlip are inherently resistant to corrosion, rust, and chemical damage, making them ideal for use in marine environments, chemical processing plants, and other corrosive settings.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 20mm
- Length:
- 40.5mm
- Material:
- Stainless Steel
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PI20SS+Pin>PI20SS</a> |
| d1 | 20mm |
| l | 48mm (+0.5mm) |
| d2 | 19mm |
| l1 | 40.5mm (+0.2mm) |
| z | 1mm |
| m | 1.3mm |
| Weight | 0.118kg |
| --- | Circlip |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=SS.D1400-020+Circlip>SS.D1400-020</a> |
| Shaft Size | 20mm |
| Circlip Thickness s | 1.2mm |
| Thickness Tol. | -0.06mm |
| Unstressed diameter d3 | 18.5mm |
| Unstressed diameter tol | +0.13/-0.42mm |
| Lug a | 4mm |
| Beam b | 2.6mm |
| d5 | 2mm |
| Groove Diameter | 19mm |
| Groove Tolerance | -0.13mm |
| Minimum groove width | 1.3mm |
| Groove depth | 0.5mm |
| Weight | 0.0013kg |
