SKU: PI6SS

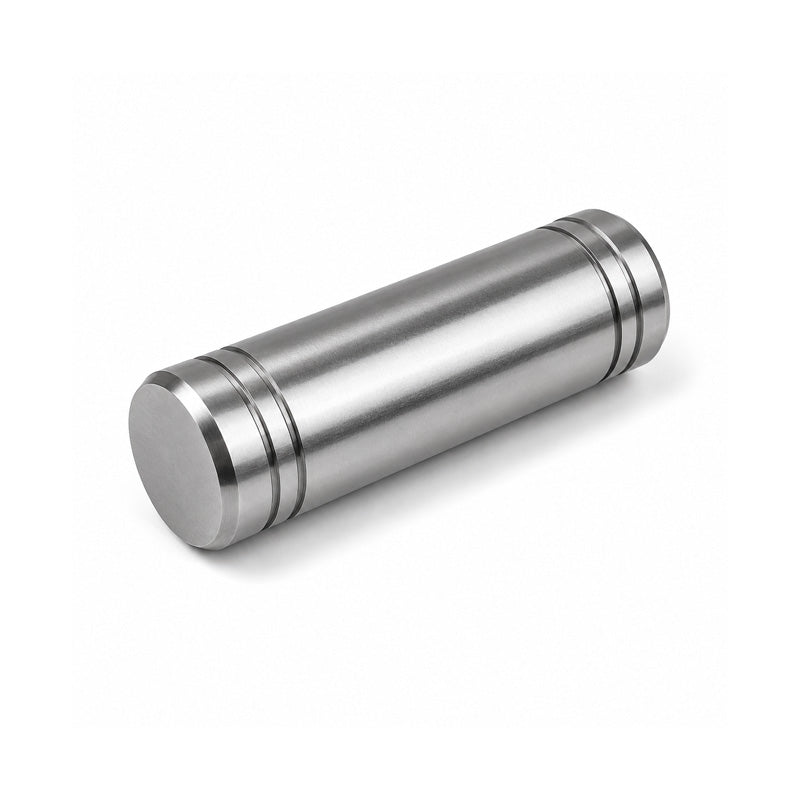

Chiavette PI6SS Stainless Steel Clevis Pin 6x17mm - Allow 2-3 Days
In stock
Couldn't load pickup availability
Share this product
Description
Chiavette Stainless Steel Clevis Pin: These clevis pins feature a groove on one end designed to seamlessly accommodate a circlip which retains the pin in place. The pin fits within a clevis joint and is secured with a circlip (available separately) on one end ensuring secure and steadfast attachment in various applications. Alongside secure fastening, clevis pins also allow the 360-degree swivel or rotational action of any linked parts. Manufactured in high-quality stainless steel (AISI 303), these clevis pins are inherently resistant to corrosion, rust, and chemical damage, making them ideal for use in marine environments, chemical processing plants, and other corrosive settings. These pins are designed to work alongside our range of stainless steel clevises and stainless steel circlips. For further information regarding the compatibility of these pins with specific clevis models, please contact our sales department for assistance.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 6mm
- Length:
- 17mm
- Material:
- Stainless Steel
Technical
| --- | Dimensions |
|---|---|
| No. | PI6SS |
| d1 | 6mm |
| l | 17mm (+0.5mm) |
| d2 | 5.7mm |
| l1 | 12.5mm (+0.2mm) |
| z | 0.5mm |
| m | 0.8mm |
| Weight | 0.005kg |
| --- | Use With |
| Circlip | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=SS.D1400-006+Circlip>SS.D1400-006</a> |
