Chiavette PKS16/KL16 Steel Clevis Pin and Retainer 20x38.5mm - Allow 7-10 Days
Chiavette PKS16/KL16 Steel Clevis Pin and Retainer 20x38.5mm - Allow 7-10 Days
Out of stock
Description
Description

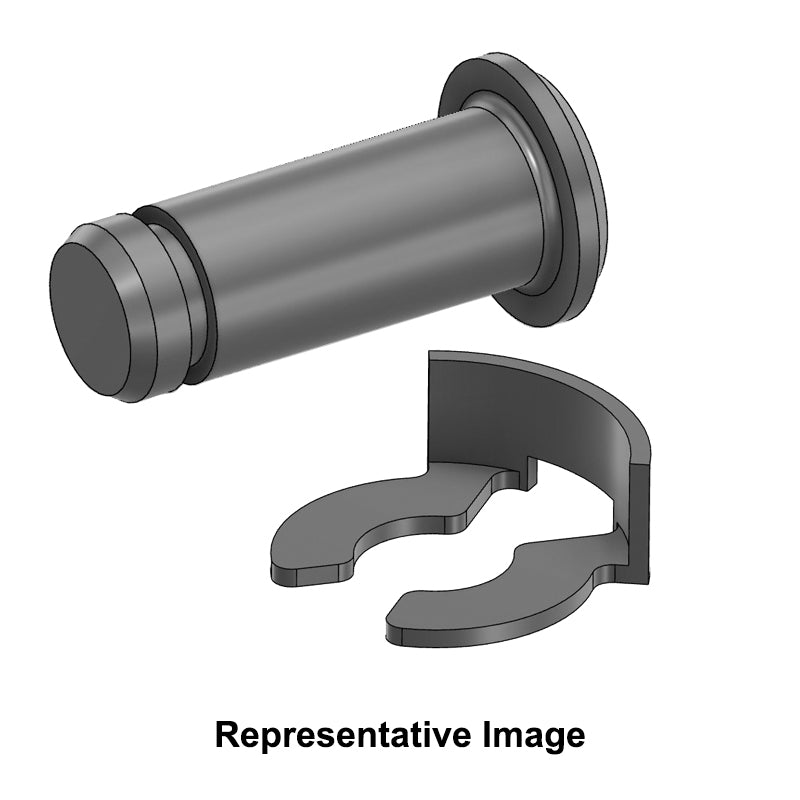

Chiavette Steel Clevis Pin with Retainer: This kit includes a grooved steel clevis pin and a matching spring steel retaining clip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included retainer that fits within the groove of the pin on one end.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 16mm
- Length:
- 38.5mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PKS16+Pin>PKS16</a> |
| Material | Steel |
| d1 | 16mm |
| D | 20mm |
| k | 3mm |
| z | 1.5mm |
| z1 | 1.5mm |
| r | 1mm |
| d2 | 12mm |
| m | 1.35mm (+0.1mm) |
| l1 | 32.5mm (+0.3mm) |
| l | 38.5mm (+0.3mm) |
| Weight | 0.067kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=KL16+Retainer>KL16</a> |
| Material | Spring Steel |
| d1 | 16mm |
| a | 22.7mm |
| h | 23.5mm |
| h1 | 13.8mm |
| b | 7.8mm |
| s | 0.58mm |
| d2 | 12mm |
| m | 1.35mm (+0.1mm) |
| n | 6mm (+0.30mm) |
| z1 | 1.5mm |
| Max axial Load | 14 kN |
| Weight | 0.002282kg |
