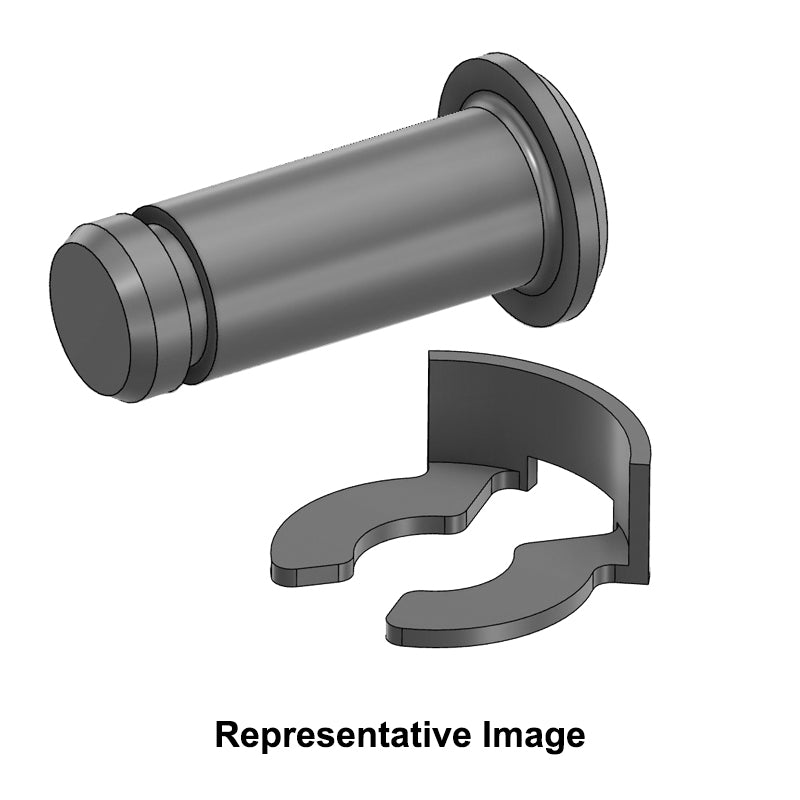

Chiavette PKS5/KL5 Steel Clevis Pin and Retainer 8x13mm - Allow 2-3 Days
Chiavette PKS5/KL5 Steel Clevis Pin and Retainer 8x13mm - Allow 2-3 Days
Regular price
$2.22
ex VAT
Regular price
Sale price
$2.22
ex VAT
In stock
Price Break
10+
$1.17
19+
$1.00
29+
$0.92
39+
$0.84
49+
$0.67
74+
$0.58
99+
$0.50
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Chiavette Steel Clevis Pin with Retainer: This kit includes a grooved steel clevis pin and a matching spring steel retaining clip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included retainer that fits within the groove of the pin on one end.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 5mm
- Length:
- 13mm
- Material:
- Steel

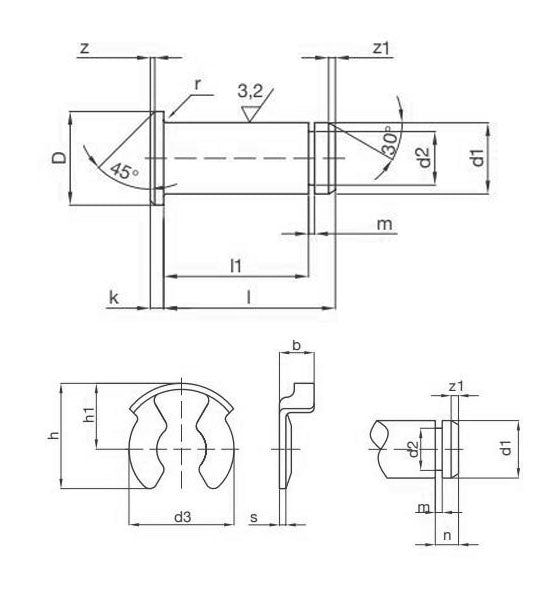

Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PKS5+Pin>PKS5</a> |
| Material | Steel |
| d1 | 5mm |
| D | 8mm |
| k | 1.5mm |
| z | 0.5mm |
| z1 | 0.5mm |
| r | 0.5mm |
| d2 | 4mm |
| m | 0.74mm (+0.1mm) |
| l1 | 10.5mm (+0.3mm) |
| l | 13mm (+0.3mm) |
| Weight | 0.003kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=KL5+Retainer>KL5</a> |
| Material | Spring Steel |
| d1 | 5mm |
| a | 7.5mm |
| h | 8.7mm |
| h1 | 5.2mm |
| b | 2.8mm |
| s | 0.5mm |
| d2 | 4mm |
| m | 0.74mm (+0.1mm) |
| n | 2.5mm (+0.30mm) |
| z1 | 0.5mm |
| Max axial Load | 3 kN |
| Weight | 0.000195kg |
