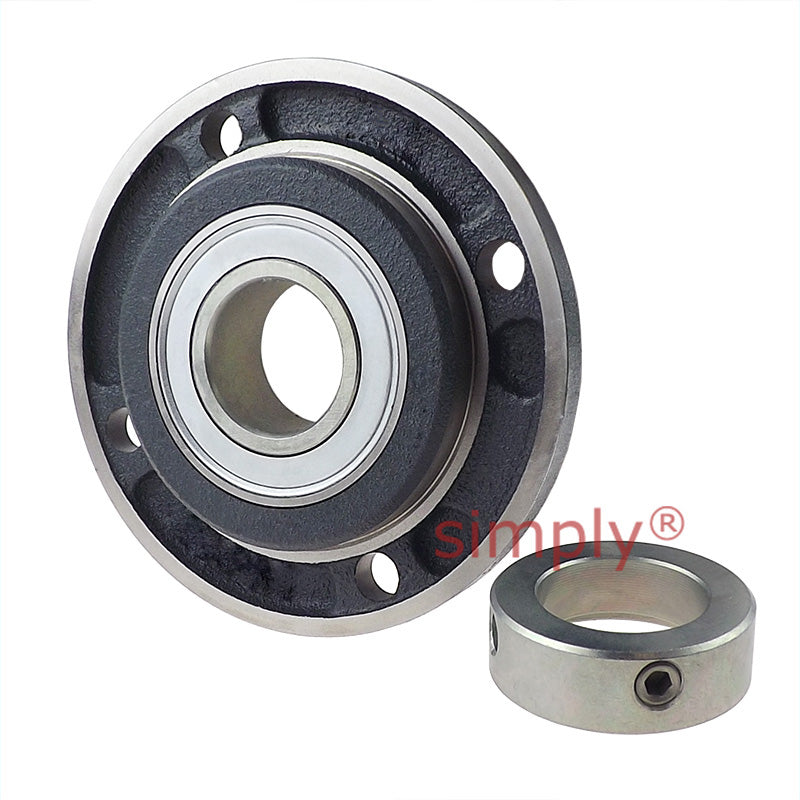

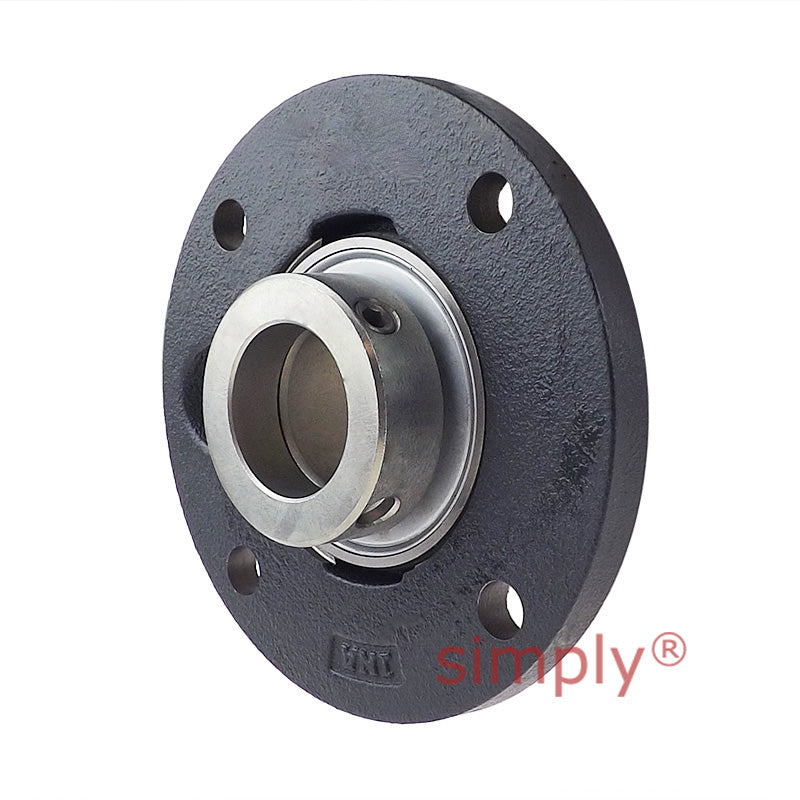

• INA PME30XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 30mm Bore
  • INA PME30XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 30mm Bore
  • INA
1 3

SKU: PME30-XL-N-INA

INA PME30XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 30mm Bore

INA PME30XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 30mm Bore
$67.48 ex VAT
$67.48 ex VAT
Sale Sold out

In stock

Price Break
4+ $45.20
9+ $42.66
19+ $42.16
29+ $41.65
39+ $41.14
49+ $40.63
59+ $38.09
69+ $37.58
79+ $37.08
89+ $36.57
99+ $35.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
PME
Pitch Circle Diameter:
100mm
Technical
d 30mm
H 125mm
B1 35.8mm
A 20.5mm
A1 9.5mm
A2 2mm
d3 max 44mm
J 100
N 11.5mm
Q M6
S 2mm
U 24.7mm
Z 80mm (Tolerance: h8)
Mass 0.97 kg
Basic dynamic load rating Cr 20700 N
Basic static load rating Cor 11300 N
Designation of housing ME06
Designation of bearing GRAE30-XL-NPP-B
Bearing end cap, closed design (to be ordered seperately) KASK06
