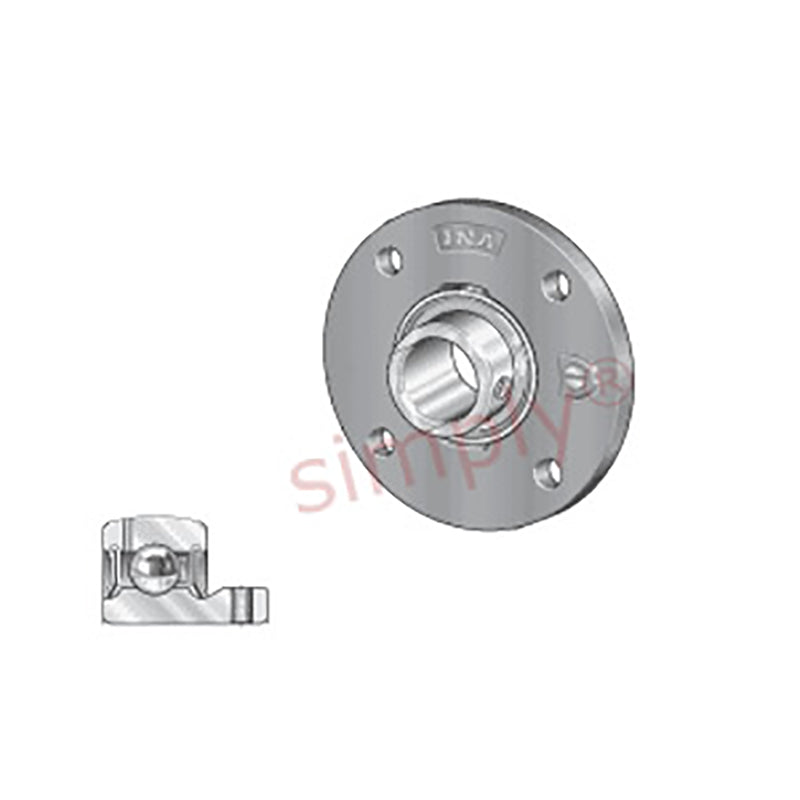

• INA PMEY20XLN Four Bolt Cast Iron Round Housing with Grub Screw Insert 20mm Bore
  • INA
1 2

SKU: PMEY20-XL-N-INA

INA PMEY20XLN Four Bolt Cast Iron Round Housing with Grub Screw Insert 20mm Bore

INA PMEY20XLN Four Bolt Cast Iron Round Housing with Grub Screw Insert 20mm Bore
$45.40 ex VAT
$45.40 ex VAT
Sale Sold out

In stock

Price Break
4+ $30.41
9+ $28.70
19+ $28.36
29+ $28.02
39+ $27.68
49+ $27.34
59+ $25.63
69+ $25.29
79+ $24.94
89+ $24.60
99+ $23.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
PMEY
Pitch Circle Diameter:
78mm
Technical
d 20mm
H 100mm
B 25mm
A 17mm
A1 8mm
A2 2mm
J 78
N 9mm
Q M6
S 2mm
U 16mm
Z 62mm (Tolerance: h8)
Mass 0.5 kg
Basic dynamic load rating Cr 13600 N
Basic static load rating Cor 6600 N
Designation of housing ME04
Designation of bearing GAY20-XL-NPP-B
Bearing end cap, closed design (to be ordered seperately) KASK04
