• Major Brand PNA15/32 Needle Roller Bearing Alignment Type With Shaft Sleeve 15x32x16
1 1

SKU: PNA15/32-MB

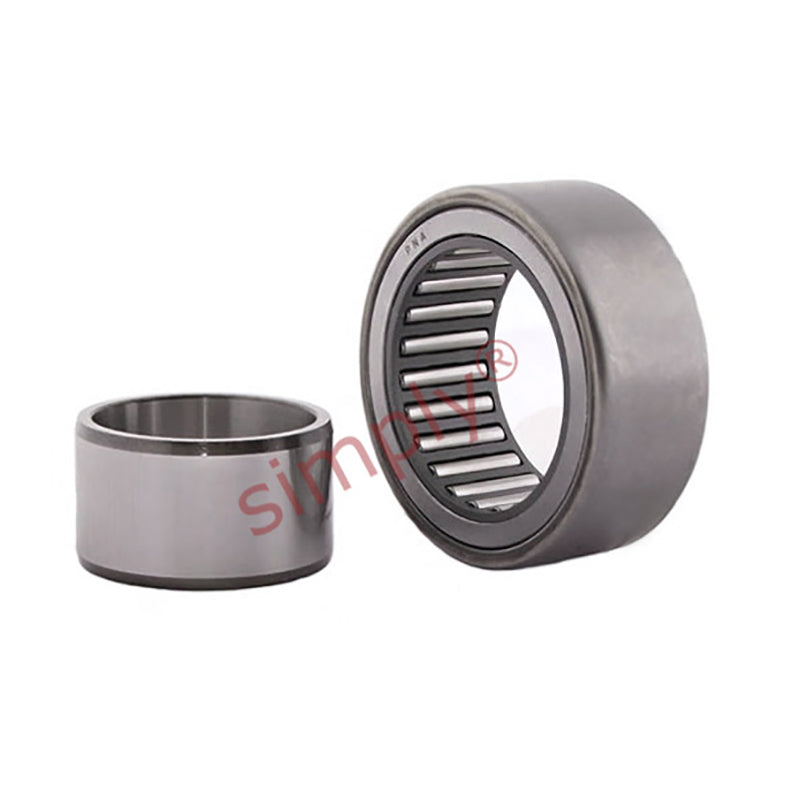

Major Brand PNA15/32 Needle Roller Bearing Alignment Type With Shaft Sleeve 15x32x16

Major Brand PNA15/32 Needle Roller Bearing Alignment Type With Shaft Sleeve 15x32x16
$61.84 ex VAT
$61.84 ex VAT
Sale Sold out

In stock

Price Break
10+ $41.42
19+ $39.09
29+ $38.63
39+ $38.16
49+ $37.70
74+ $37.23
99+ $34.90
199+ $34.44
249+ $33.97
499+ $33.51
999+ $32.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment.
Benefits: Supplied with the inner ring, tolerates misalignment
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
15mm
Outside Diameter:
32mm
Width:
16mm
Technical
d 15mm
D 32mm
B 16mm
Dynamic load 12800 N
Static load 17600 N
Fatigue load limit Pu 2120 N
Speed in grease 15000 rpm
Speed in oil 22000 rpm
F 18mm
D1 27mm
r min 1mm
r1r2 min 0.3mm
s (axial disp) 0.5mm
da min 17mm
Da min 26
