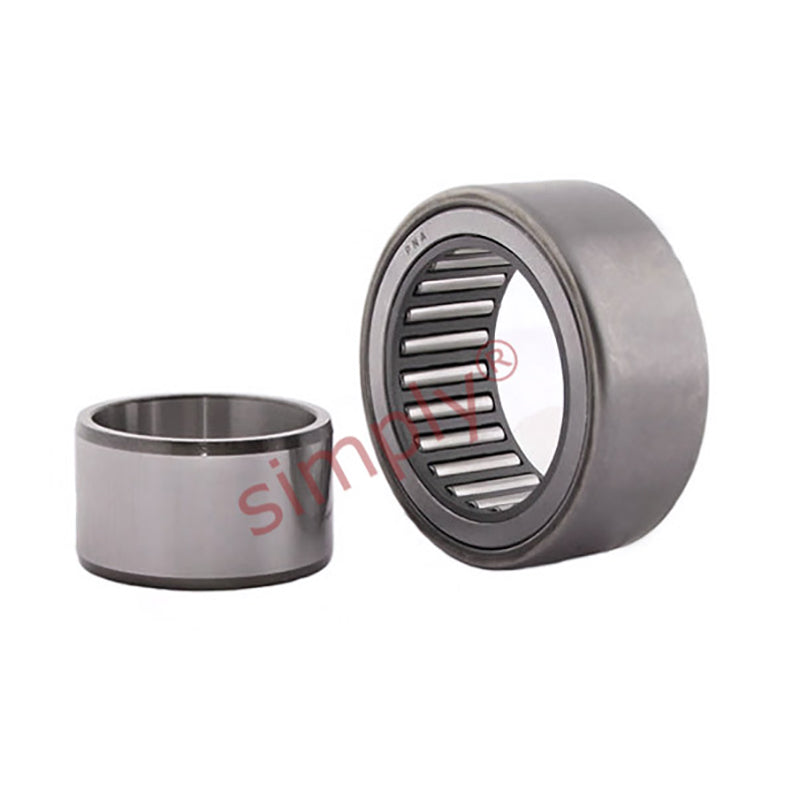

• Major Brand PNA17/35 Needle Roller Bearing Alignment Type With Shaft Sleeve 17x35x16
1 1

SKU: PNA17/35-MB

Major Brand PNA17/35 Needle Roller Bearing Alignment Type With Shaft Sleeve 17x35x16

Major Brand PNA17/35 Needle Roller Bearing Alignment Type With Shaft Sleeve 17x35x16
$67.99 ex VAT
$67.99 ex VAT
Sale Sold out

In stock

Price Break
10+ $45.55
19+ $42.99
29+ $42.47
39+ $41.96
49+ $41.45
74+ $40.94
99+ $38.38
199+ $37.87
249+ $37.36
499+ $36.85
999+ $35.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment.
Benefits: Supplied with the inner ring, tolerates misalignment
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
17mm
Outside Diameter:
35mm
Width:
16mm
Technical
d 17mm
D 35mm
B 16mm
Dynamic load 13200 N
Static load 19300 N
Fatigue load limit Pu 2280 N
Speed in grease 13000 rpm
Speed in oil 19000 rpm
F 20mm
D1 30.5mm
r min 1mm
r1r2 min 0.3mm
s (axial disp) 0.5mm
da min 19mm
Da min 29.5
