SKU: PNA35/55-EU

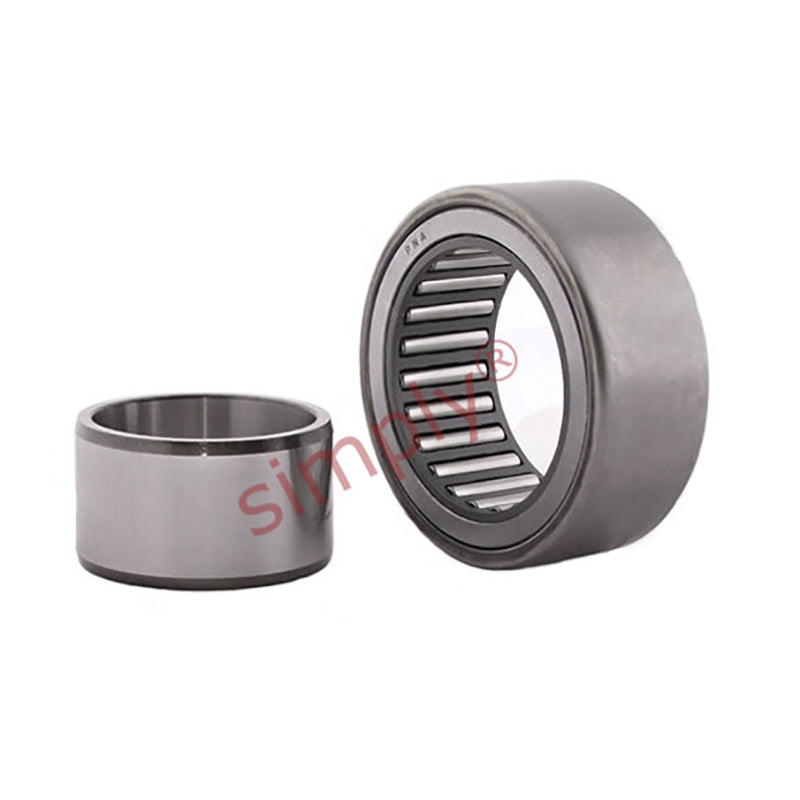

PNA35/55 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 35x55x20
PNA35/55 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 35x55x20
Regular price
$44.87
ex VAT
Regular price
Sale price
$44.87
ex VAT
In stock
Price Break
10+
$30.05
19+
$28.37
29+
$28.03
39+
$27.69
49+
$27.35
74+
$27.01
99+
$25.33
199+
$24.99
249+
$24.65
499+
$24.31
999+
$23.64
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 20mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 55mm |
| B | 20mm |
| Dynamic load C | 26400 N |
| Static load Co | 51000 N |
| Fatigue load limit Pu | 6300 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| F | 40mm |
| D1 | 50.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 37mm |
| Da min | 49.5mm |
| Da max | 50.5mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 180 g |
