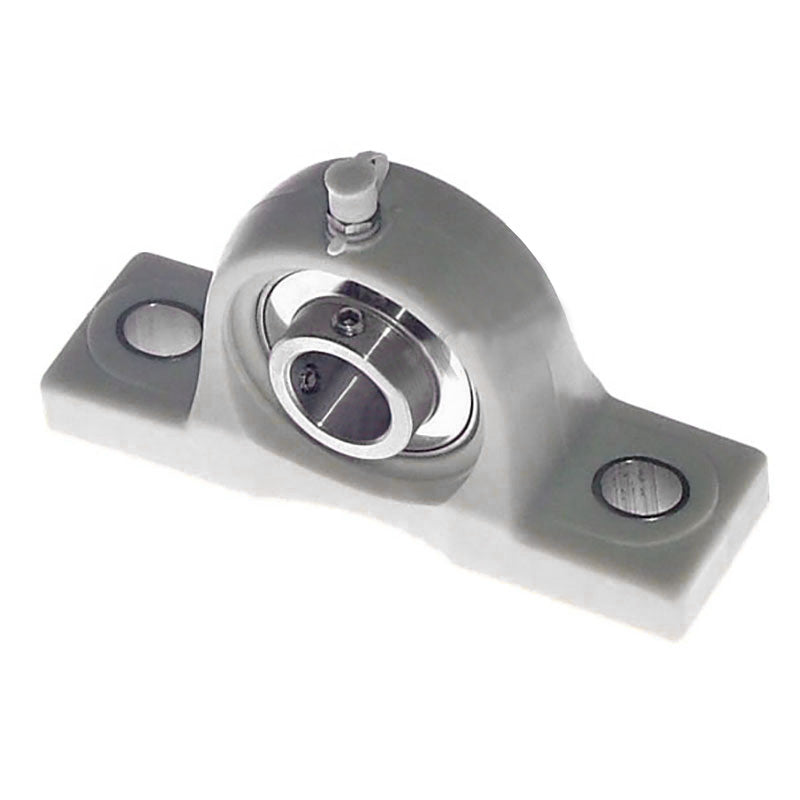

• RHP PNP30CR Thermo Plastic Two Bolt Pillow Block Housing with 30mm Bore Stainless Insert
1 1

SKU: PNP30CR-RHP

RHP PNP30CR Thermo Plastic Two Bolt Pillow Block Housing with 30mm Bore Stainless Insert

RHP PNP30CR Thermo Plastic Two Bolt Pillow Block Housing with 30mm Bore Stainless Insert
$120.87 ex VAT
$120.87 ex VAT
Sale Sold out

In stock

Price Break
10+ $80.96
20+ $76.42
30+ $75.51
40+ $74.60
50+ $73.69
75+ $72.78
100+ $68.23
200+ $67.32
250+ $66.41
500+ $65.50
1000+ $63.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
PNP
Colour:
White
Bolt Hole Centres:
118.9mm
Technical
L 162.2mm
H 42.9mm
H1 17.8mm
H2 83.9mm
J 118.9mm
N 14mm
N1 18.2mm
G M12
37.8 45.8mm
A1 27mm
B 38.1mm
S 15.9mm
Approx weight kg 0.52 kg
P1 Intermittent Loading 5000 N
P1 Continuous Loading 2500 N
P1 Cyclical Loading 1200 N
P2 Intermittent Loading 3500 N
P2 Continuous Loading 1800 N
P2 Cyclical Loading 1000 N
P3 Intermittent Loading 4000 N
P3 Continuous Loading 2000 N
P3 Cyclical Loading 1100 N
1700 2600 N
P4 Continuous Loading 1300 N
P4 Cyclical Loading 700 N
Max. Fixing Bolt Torque 30 Nm
