SKU: PNP35CR-RHP

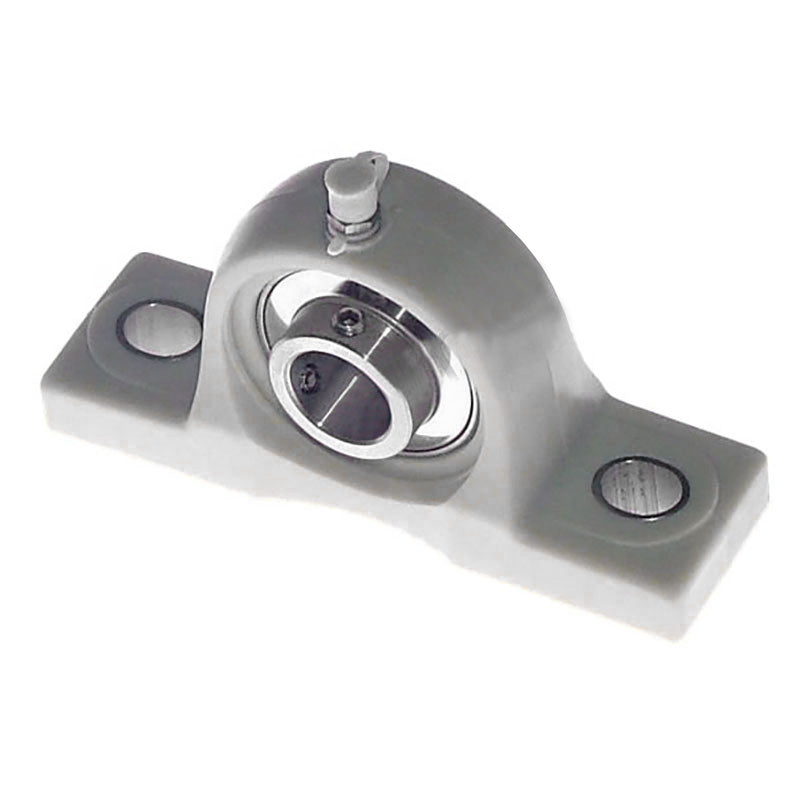

RHP PNP35CR Thermo Plastic Two Bolt Pillow Block Housing with 35mm Bore Stainless Insert - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
RHP PNP Series Thermo Plastic 2 Bolt Pillow Block Housings: Bearing units supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required. The Silver-Lube series is a range of corrosion-resistant bearing units specifically for use in industries where frequent thorough washdowns are necessary, optimum hygiene standards are required and good chemical resistance is important over a wide temperature range. Silver-Lube housings are made from PBT thermoplastic resin which, in addition to being non-corrodible, is resistant to detergents and a wide range of chemicals. The housings are paint and coating free which prevents chipping or flaking and have smooth surfaces to assist thorough washdowns. The Silver-Lube® bearing inserts are made from stainless steel, are provided with effective, efficient sealing arrangements and are charged with an aluminium complex, high temperature approved food grade grease as standard.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food-safe and approved
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- PNP
- Colour:
- White
- Bolt Hole Centres:
- 126.9mm
Technical
| L | 167.2mm |
|---|---|
| H | 47.6mm |
| H1 | 18mm |
| H2 | 94.9mm |
| J | 126.9mm |
| N | 14mm |
| N1 | 18.2mm |
| G | M12 |
| 45.8 | 47.8mm |
| A1 | 32.5mm |
| B | 42.9mm |
| S | 17.5mm |
| Approx weight kg | 0.72 kg |
| P1 Intermittent Loading | 6000 N |
| P1 Continuous Loading | 3000 N |
| P1 Cyclical Loading | 1500 N |
| P2 Intermittent Loading | 4300 N |
| P2 Continuous Loading | 2100 N |
| P2 Cyclical Loading | 1200 N |
| P3 Intermittent Loading | 4100 N |
| P3 Continuous Loading | 2100 N |
| P3 Cyclical Loading | 1100 N |
| 2600 | 3200 N |
| P4 Continuous Loading | 1600 N |
| P4 Cyclical Loading | 900 N |
| Max. Fixing Bolt Torque | 35 Nm |
