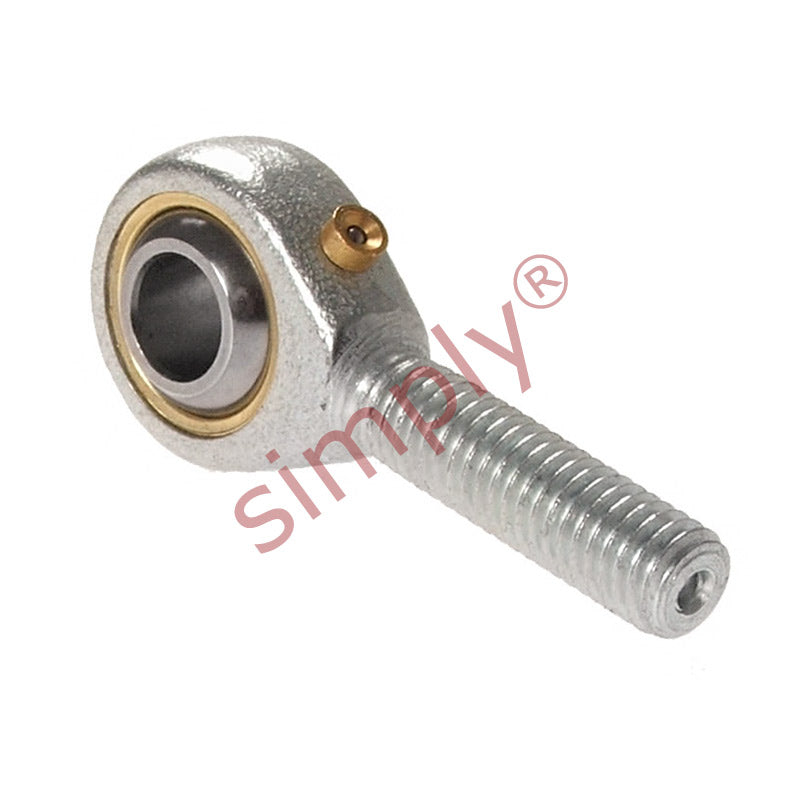

Budget POS10/F1 Right Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10x1.25 Thread

Name: Budget POS10/F1 Right Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10x1.25 Thread
Brand: Gen
SKU: POS10/F1.EU
Price: 15.29 USD
Availability: InStock

$15.29 ex VAT

Sale Sold out

In stock

Price Break

10+ $10.25

19+ $9.67

29+ $9.56

39+ $9.44

49+ $9.33

74+ $9.21

99+ $8.63

199+ $8.52

249+ $8.40

499+ $8.29

999+ $8.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M10x1.25
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 10mm
Material:: Bronze Lined

Technical

d	10mm
B	14mm
r1	0.6mm
C1	10.5mm
d1 max	12.9mm
d2	26mm
d3	M10x1.25
h	48mm
l1	29mm
l2	61mm
Ball diameter	3/4 inch
Dynamic load Cr	10 kN
Static load Cor	13.6 kN
Max angle α	13
Weight	0.054 kg
