SKU: POS10-MF.EU

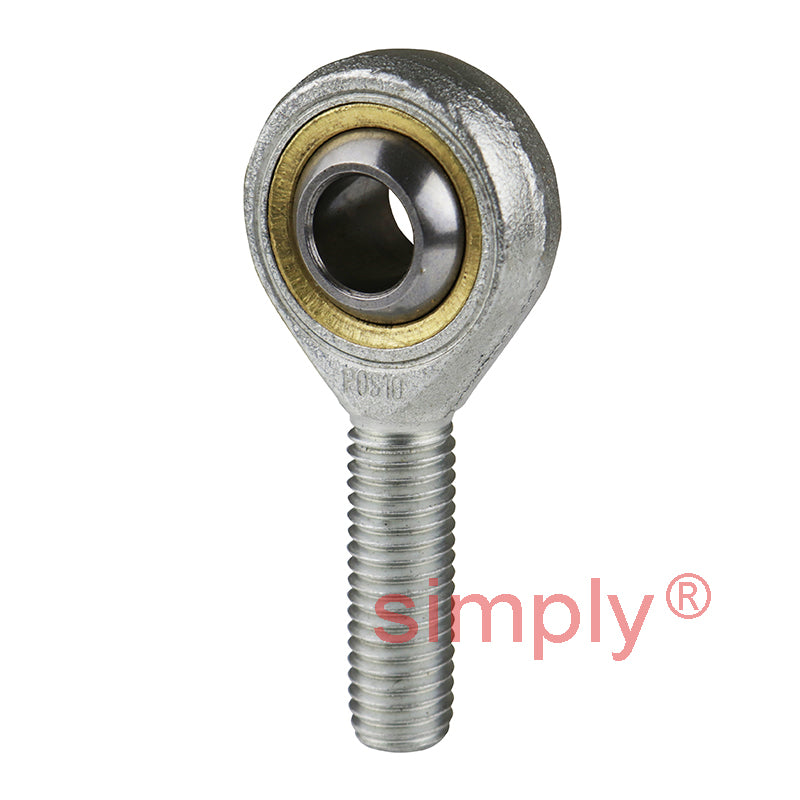

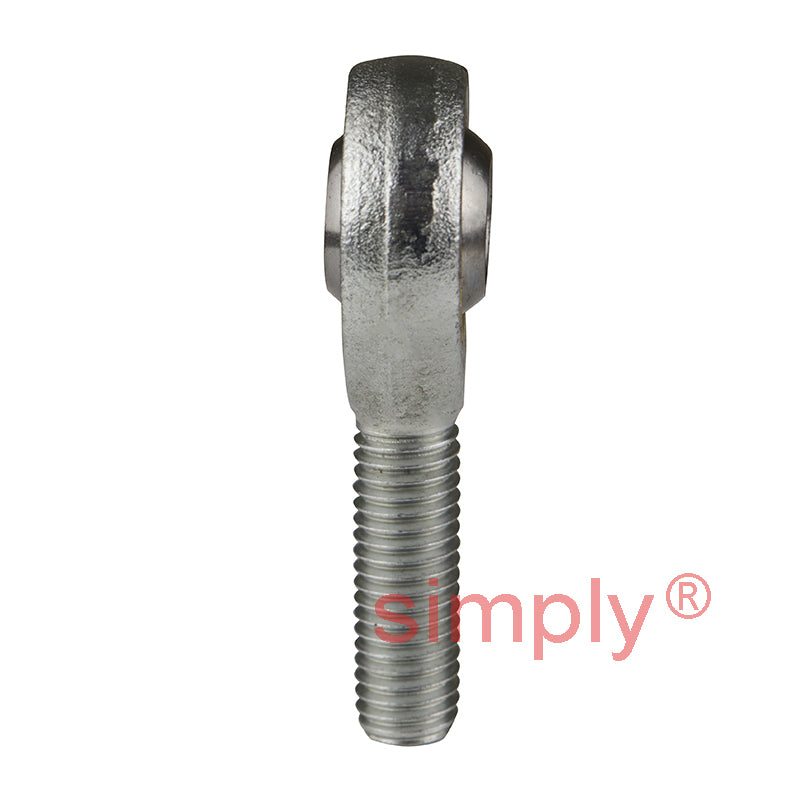

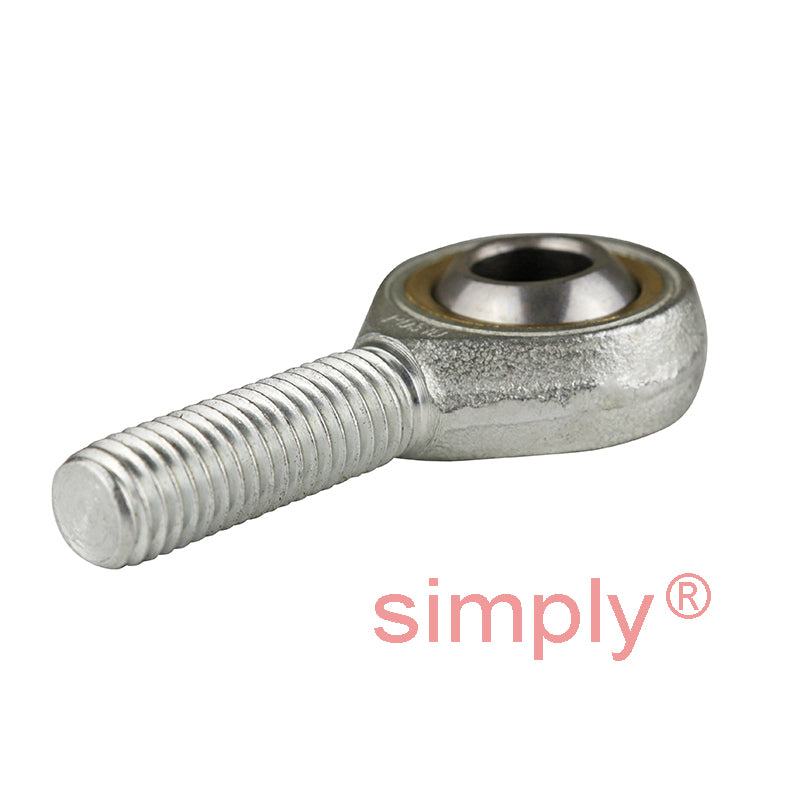

Budget POS10EC Maintenance Free Right Hand Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
Budget POS10EC Maintenance Free Right Hand Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
Regular price
$6.10
ex VAT
Regular price
Sale price
$6.10
ex VAT
In stock
Price Break
10+
$4.09
19+
$3.86
29+
$3.81
39+
$3.77
49+
$3.72
74+
$3.68
99+
$3.45
199+
$3.40
249+
$3.35
499+
$3.31
999+
$3.22
Quantity
Couldn't load pickup availability
Description
Description
|
Steel Maintenance Free Male Rod End with PTFE Liner: These rod ends consist of a Steel body with a Steel ball running in a PTFE maintenance free liner captive in a Steel ball mount. Benefits: Cost-effective replacement bearing, sliding surfaces are steel against PTFE, and maintenance free. Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover them with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Steel, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M10x1.25
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 10mm
- Material:
- PTFE Lined

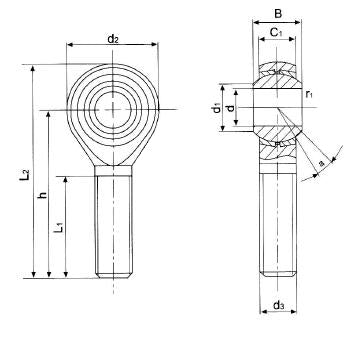

Technical
Technical
| d | 10mm |
|---|---|
| B | 14mm |
| r1 | 0.6mm |
| C1 | 10.5mm |
| d1 max | 12.9mm |
| d2 | 26mm |
| d3 | M10x1.25 |
| h | 48mm |
| l1 | 29mm |
| l2 | 61mm |
| Ball diameter | 3/4 inch |
| Dynamic load Cr | 10 kN |
| Static load Cor | 13.6 kN |
| Max angle α | 13 |
| Weight | 0.054 kg |
