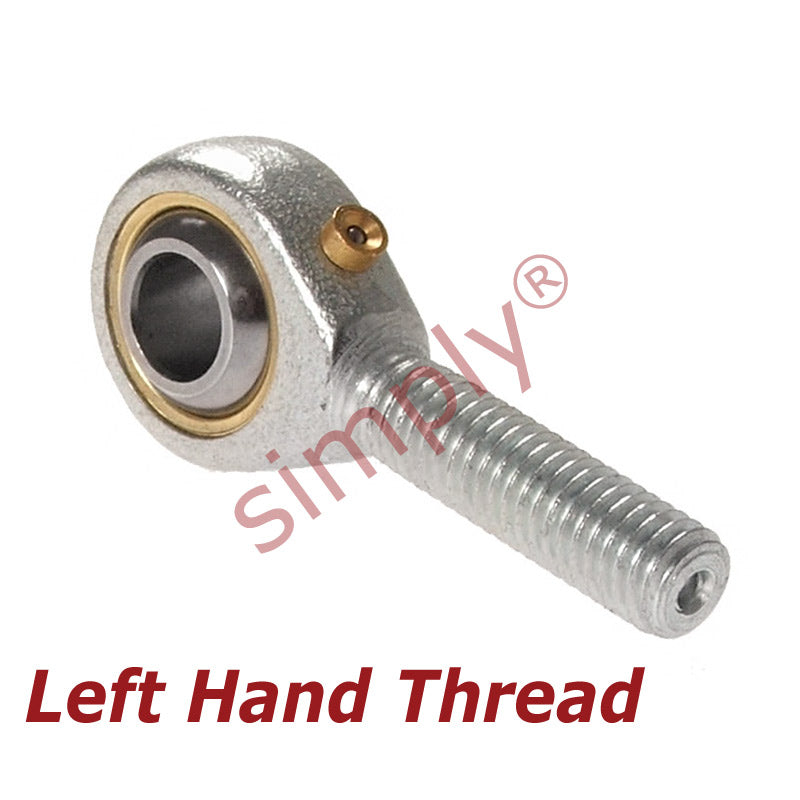

• Budget POS10L Left Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
1 1

SKU: POS10L.EU

Budget POS10L Left Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10x1.5 Thread

Budget POS10L Left Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
$7.44 ex VAT
$7.44 ex VAT
Sale Sold out

Equivalent to: SALKAC10M MBL-M10

In stock

Price Break
10+ $4.98
19+ $4.70
29+ $4.65
39+ $4.59
49+ $4.54
74+ $4.48
99+ $4.20
199+ $4.14
249+ $4.09
499+ $4.03
999+ $3.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M10x1.5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
10mm
Material:
Bronze Lined
Technical
d 10mm
B 14mm
r1 0.6mm
C1 10.5mm
d1 max 12.9mm
d2 26mm
d3 M10x1.5
h 48mm
l1 29mm
l2 61mm
Ball diameter 3/4 inch
Dynamic load Cr 10 kN
Static load Cor 13.6 kN
Max angle α 13
Weight 0.054 kg
