SKU: POS12-PTFE

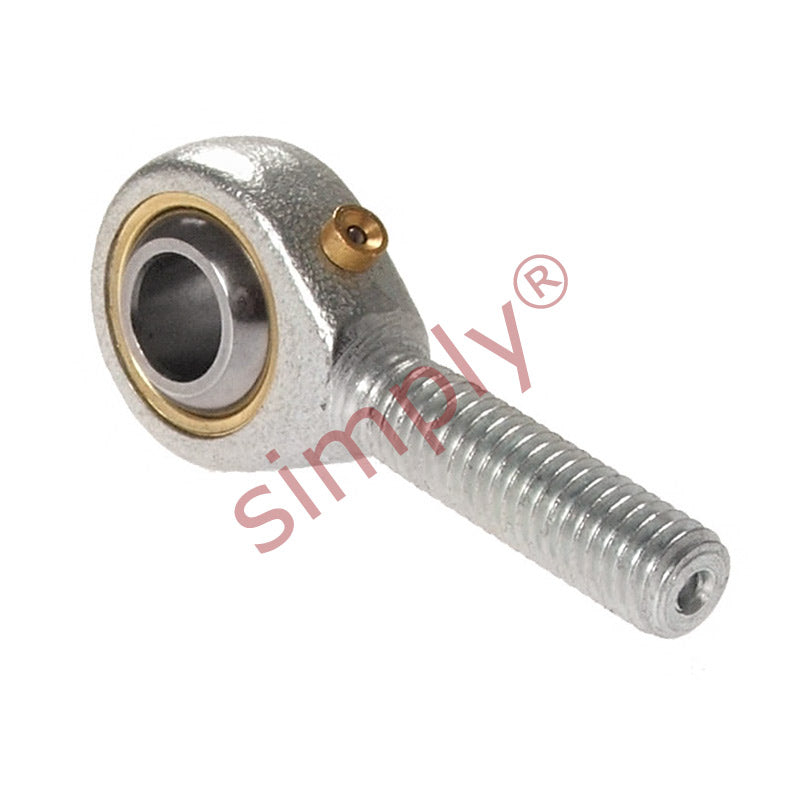

Budget POS12 Right Hand Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.75 Thread

Name: Budget POS12 Right Hand Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Brand: Gen
SKU: POS12-PTFE
Price: 11.91 USD
Availability: InStock

$11.91 ex VAT

Sale Sold out

In stock

Price Break

10+ $7.98

19+ $7.53

29+ $7.44

39+ $7.35

49+ $7.26

74+ $7.17

99+ $6.72

199+ $6.63

249+ $6.54

499+ $6.45

999+ $6.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M12x1.75
Thread Direction:: Right Hand
Material:: PTFE Lined

Technical

d	12mm
B	16mm
r1	0.6mm
C1	12mm
d1 max	15.4mm
d2	30mm
d3	M12x1.75
h	54mm
l1	33mm
l2	69mm
Ball diameter	7/8 inch
Dynamic load Cr	13.3 kN
Static load Cor	17.3 kN
Max angle α	13
Weight	0.085 kg
