SKU: POS12L.EU

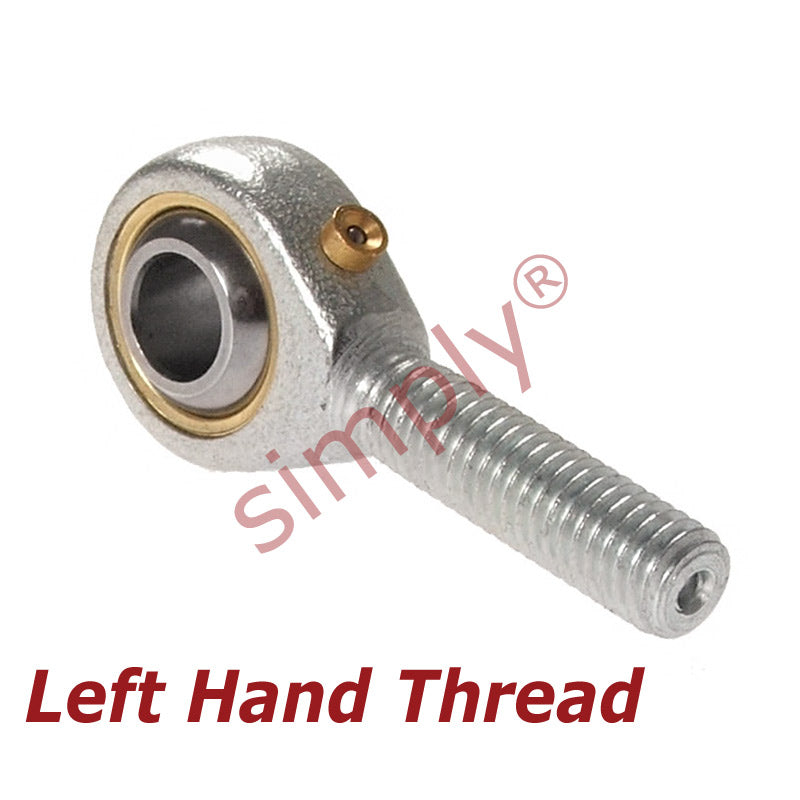

Budget POS12L Left Hand Steel / Bronze Lined Plain Male Rod End 12mm Bore M12x1.75 Thread

Name: Budget POS12L Left Hand Steel / Bronze Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Brand: Gen
SKU: POS12L.EU
Price: 8.84 USD
Availability: InStock

$8.84 ex VAT

Sale Sold out

Equivalent to: SALKAC12M MBL-M12

In stock

Price Break

10+ $5.92

19+ $5.58

29+ $5.52

39+ $5.45

49+ $5.38

74+ $5.32

99+ $4.98

199+ $4.92

249+ $4.85

499+ $4.79

999+ $4.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M12x1.75
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 12mm
Material:: Bronze Lined

Technical

d	12mm
B	16mm
r1	0.6mm
C1	12mm
d1 max	15.4mm
d2	30mm
d3	M12x1.75
h	54mm
l1	33mm
l2	69mm
Ball diameter	7/8 inch
Dynamic load Cr	13.3 kN
Static load Cor	17.3 kN
Max angle α	13
Weight	0.085 kg
