SKU: POS14/F1L.EU

Budget POS14/F1L Left Hand Steel / Bronze Lined Plain Male Rod End 14mm Bore M14x1.5 Thread

Name: Budget POS14/F1L Left Hand Steel / Bronze Lined Plain Male Rod End 14mm Bore M14x1.5 Thread
Brand: Gen
SKU: POS14/F1L.EU
Price: 36.84 USD
Availability: InStock

$36.84 ex VAT

Sale Sold out

In stock

Price Break

10+ $24.68

19+ $23.29

29+ $23.01

39+ $22.74

49+ $22.46

74+ $22.18

99+ $20.80

199+ $20.52

249+ $20.24

499+ $19.96

999+ $19.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

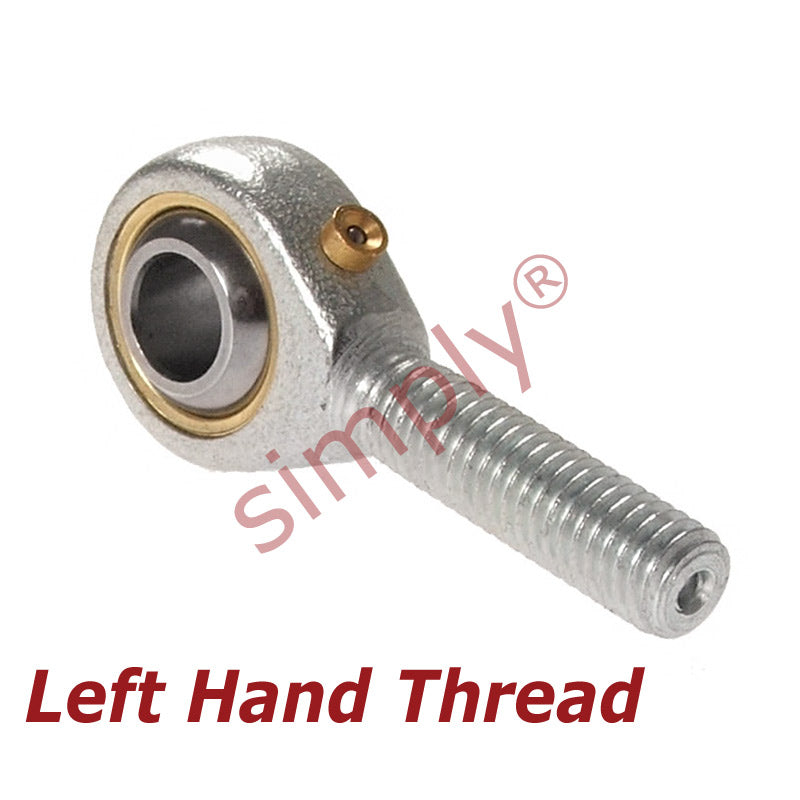

Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M14x1.5
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 14mm
Material:: Bronze Lined

Technical

d	14mm
B	19mm
r1	0.6mm
C1	13.5mm
d1 max	16.8mm
d2	34mm
d3	M14x1.5
h	60mm
l1	36mm
l2	77mm
Ball diameter	1 inch
Dynamic load Cr	17.1 kN
Static load Cor	21.3 kN
Max angle α	16
Weight	0.126 kg
