SKU: POS16.EC

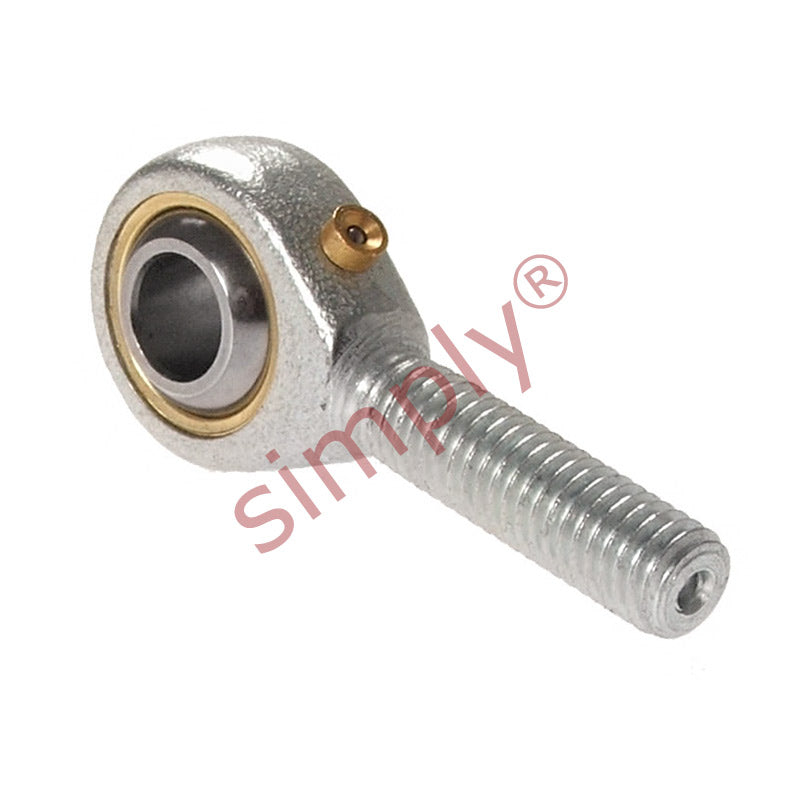

Budget POS16 Right Hand Steel / PTFE Lined Plain Male Rod End 16mm Bore M16x2 Thread

Name: Budget POS16 Right Hand Steel / PTFE Lined Plain Male Rod End 16mm Bore M16x2 Thread
Brand: Gen
SKU: POS16.EC
Price: 28.43 USD
Availability: InStock

$28.43 ex VAT

Sale Sold out

In stock

Price Break

10+ $19.04

19+ $17.97

29+ $17.76

39+ $17.55

49+ $17.33

74+ $17.12

99+ $16.05

199+ $15.83

249+ $15.62

499+ $15.41

999+ $14.98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M16x2
Thread Direction:: Right Hand
Material:: PTFE Lined

Technical

d	16mm
B	21mm
r1	0.6mm
C1	15mm
d1 max	19.3mm
d2	38mm
d3	M16x2
h	66mm
l1	40mm
l2	85mm
Ball diameter	1-1/8 inch
Dynamic load Cr	21.4 kN
Static load Cor	25.9 kN
Max angle α	15
Weight	0.185 kg
