SKU: POS16A

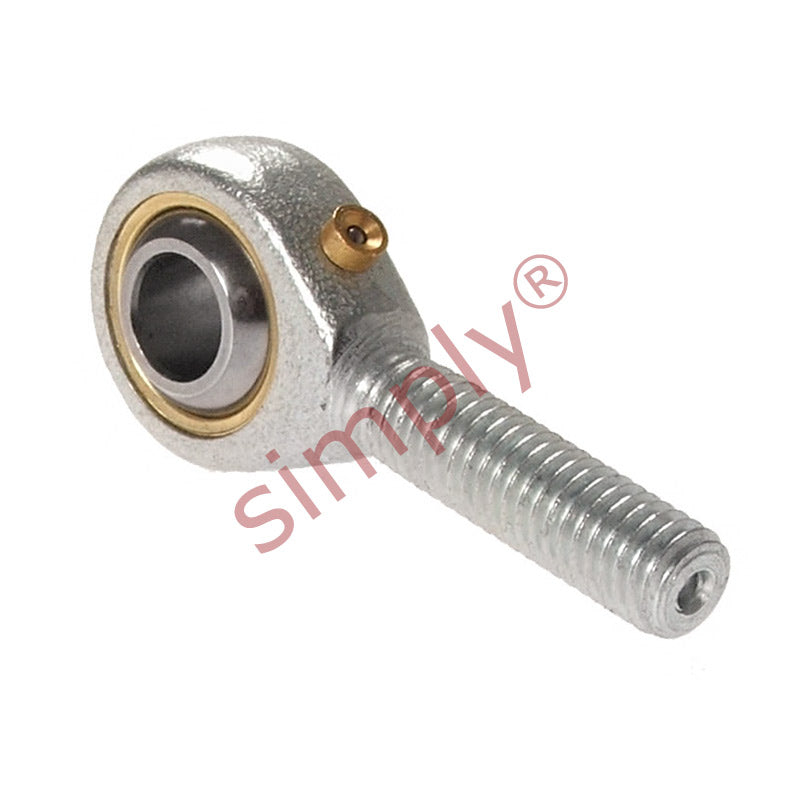

Branded POS16A Right Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread

Name: Branded POS16A Right Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread
Brand: Major Brand
SKU: POS16A
Price: 31.30 USD
Availability: InStock

$31.30 ex VAT

Sale Sold out

In stock

Price Break

10+ $20.97

19+ $19.79

29+ $19.56

39+ $19.32

49+ $19.09

74+ $18.85

99+ $17.67

199+ $17.44

249+ $17.20

499+ $16.96

999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: Major Brand - High Quality
Thread Size:: M16x2
Thread Direction:: Right Hand
Inside Diameter:: 16mm
Material:: Bronze Lined

Technical

d	16mm
B	21mm
r1	0.6mm
C1	15mm
d1 max	19.3mm
d2	38mm
d3	M16x2
h	66mm
l1	40mm
l2	85mm
Ball diameter	1-1/8 inch
Dynamic load Cr	21.4 kN
Static load Cor	25.9 kN
Max angle a	15
Weight	0.185 kg
