SKU: POS16L.EU

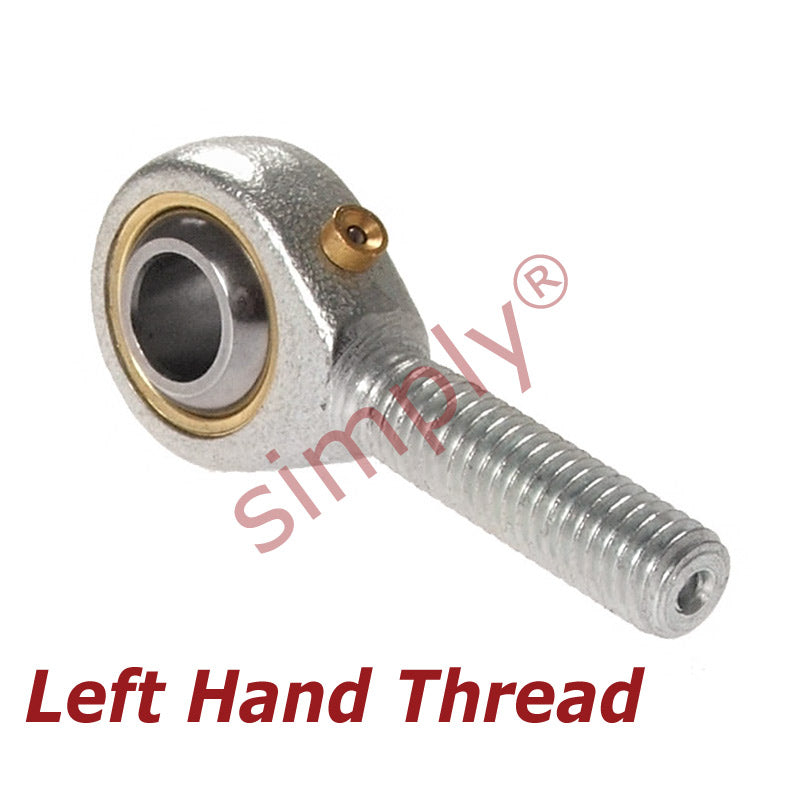

Budget POS16L Left Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread

Name: Budget POS16L Left Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread
Brand: Gen
SKU: POS16L.EU
Price: 19.19 USD
Availability: InStock

$19.19 ex VAT

Sale Sold out

Equivalent to: SALKAC16M MBL-M16

In stock

Price Break

10+ $12.85

19+ $12.13

29+ $11.98

39+ $11.84

49+ $11.70

74+ $11.55

99+ $10.83

199+ $10.69

249+ $10.54

499+ $10.40

999+ $10.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M16x2
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 16mm
Material:: Bronze Lined

Technical

d	16mm
B	21mm
r1	0.6mm
C1	15mm
d1 max	19.3mm
d2	38mm
d3	M16x2
h	66mm
l1	40mm
l2	85mm
Ball diameter	1-1/8 inch
Dynamic load Cr	21.4 kN
Static load Cor	25.9 kN
Max angle α	15
Weight	0.185 kg
