SKU: POS18.EU

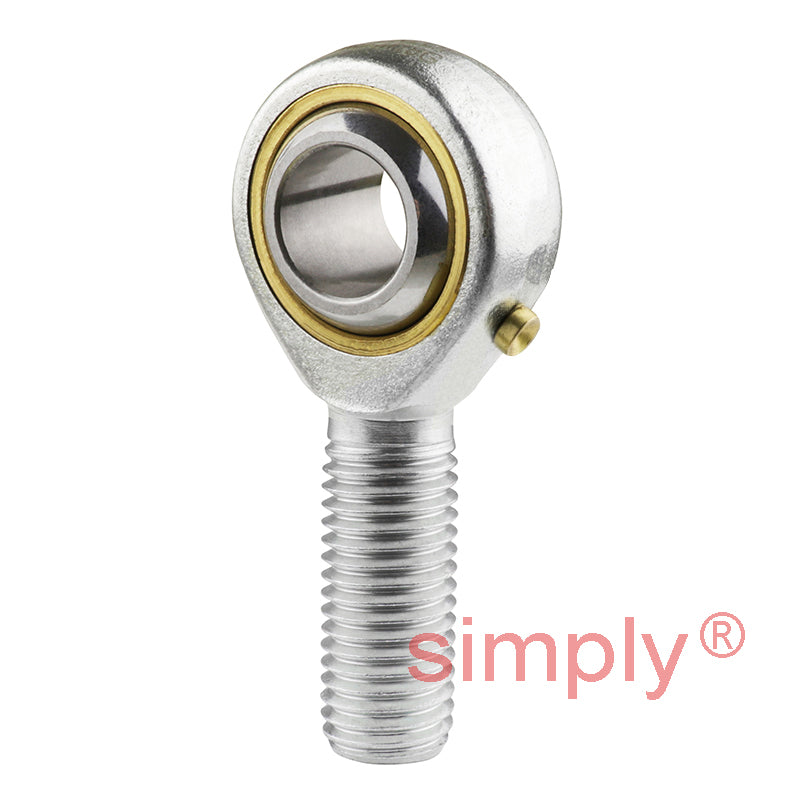

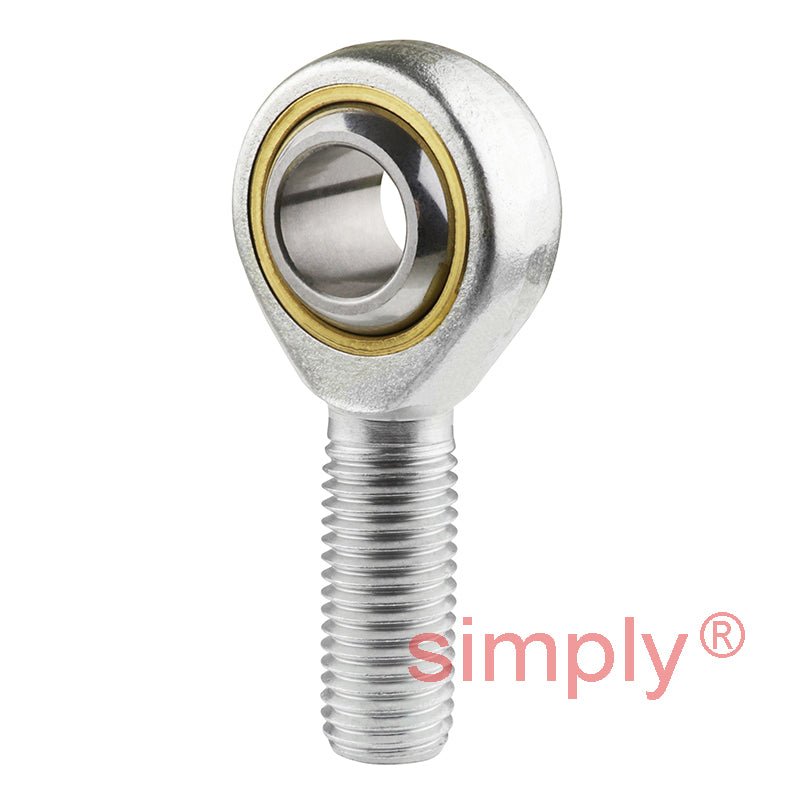

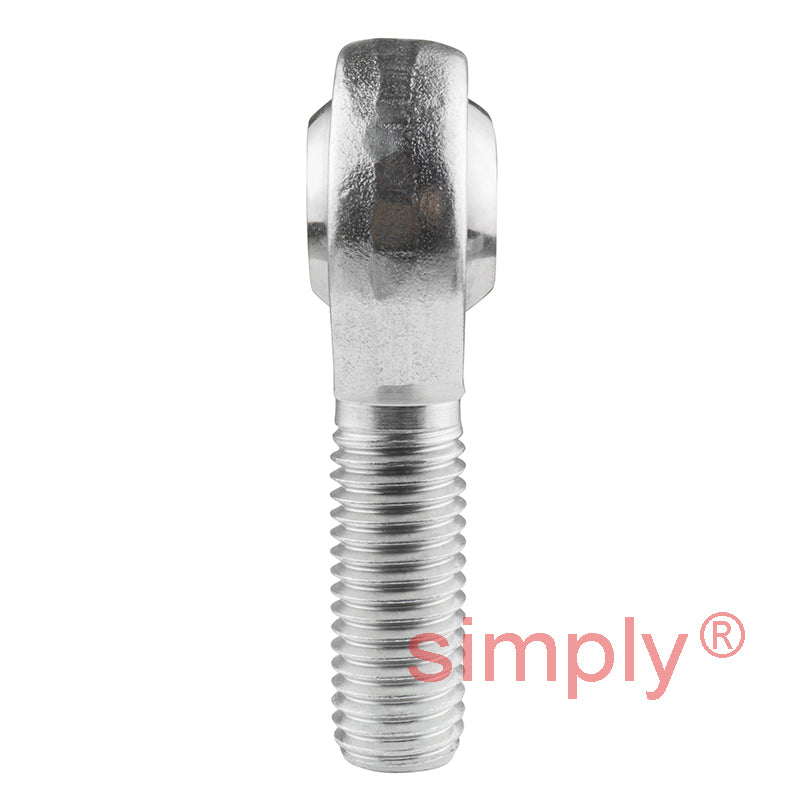

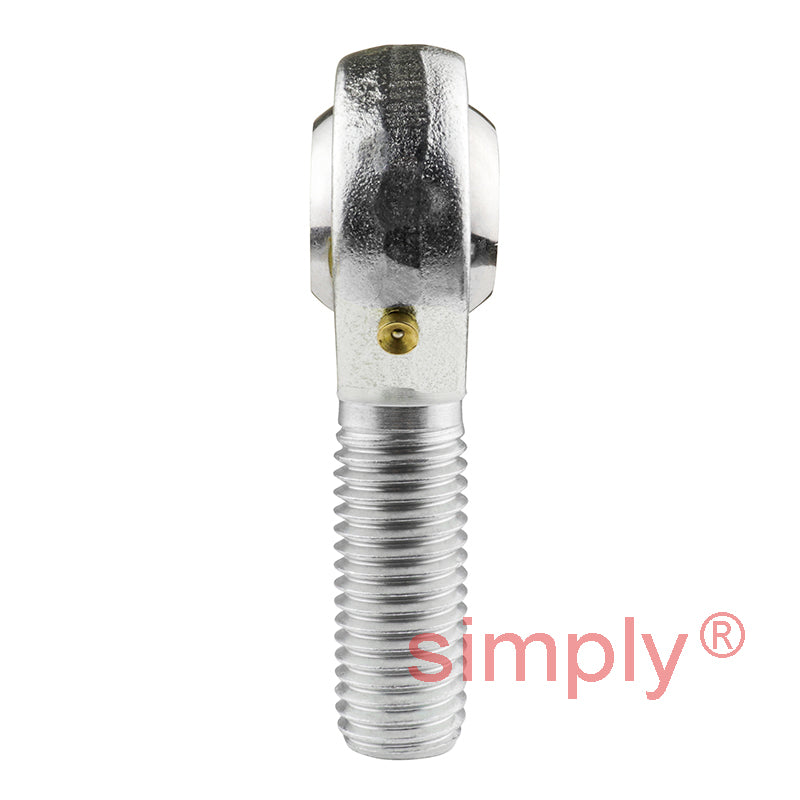

Budget POS18 Right Hand Steel / Bronze Lined Plain Male Rod End 18mm Bore M18x2.5 Thread

Budget POS18 Right Hand Steel / Bronze Lined Plain Male Rod End 18mm Bore M18x2.5 Thread
$17.67 ex VAT
$17.67 ex VAT
Sale Sold out

Equivalent to: GAKFR18PB SAKAC18M SM18 MB-M17

In stock

Price Break
10+ $11.84
19+ $11.17
29+ $11.04
39+ $10.91
49+ $10.77
74+ $10.64
99+ $9.98
199+ $9.84
249+ $9.71
499+ $9.58
999+ $9.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M18x2.5
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
18mm
Material:
Bronze Lined
Technical
d 18mm
B 23mm
r1 0.6mm
C1 16.5mm
d1 max 21.8mm
d2 42mm
d3 M18x2.5
h 72mm
l1 44mm
l2 93mm
Ball diameter 1-1/4 inch
Dynamic load Cr 26.2 kN
Static load Cor 30.8 kN
Max angle α 15
Weight 0.26 kg
