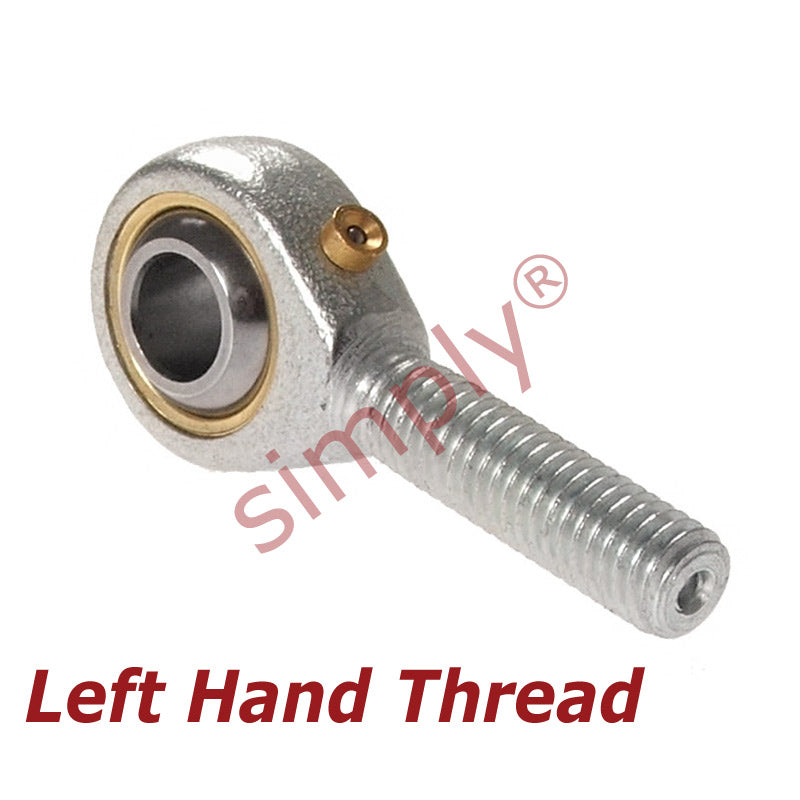

• Budget POS18L Left Hand Steel / Bronze Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
1 1

SKU: POS18L.EU

Budget POS18L Left Hand Steel / Bronze Lined Plain Male Rod End 18mm Bore M18x1.5 Thread

Budget POS18L Left Hand Steel / Bronze Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
$20.66 ex VAT
$20.66 ex VAT
Sale Sold out

Equivalent to: SALKAC18M MBL-M18

In stock

Price Break
10+ $13.84
19+ $13.06
29+ $12.91
39+ $12.75
49+ $12.60
74+ $12.44
99+ $11.66
199+ $11.51
249+ $11.35
499+ $11.20
999+ $10.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M18x1.5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
18mm
Material:
Bronze Lined
Technical
d 18mm
B 23mm
r1 0.6mm
C1 16.5mm
d1 max 21.8mm
d2 42mm
d3 M18x1.5
h 72mm
l1 44mm
l2 93mm
Ball diameter 1-1/4 inch
Dynamic load Cr 26.2 kN
Static load Cor 30.8 kN
Max angle α 15
Weight 0.26 kg
