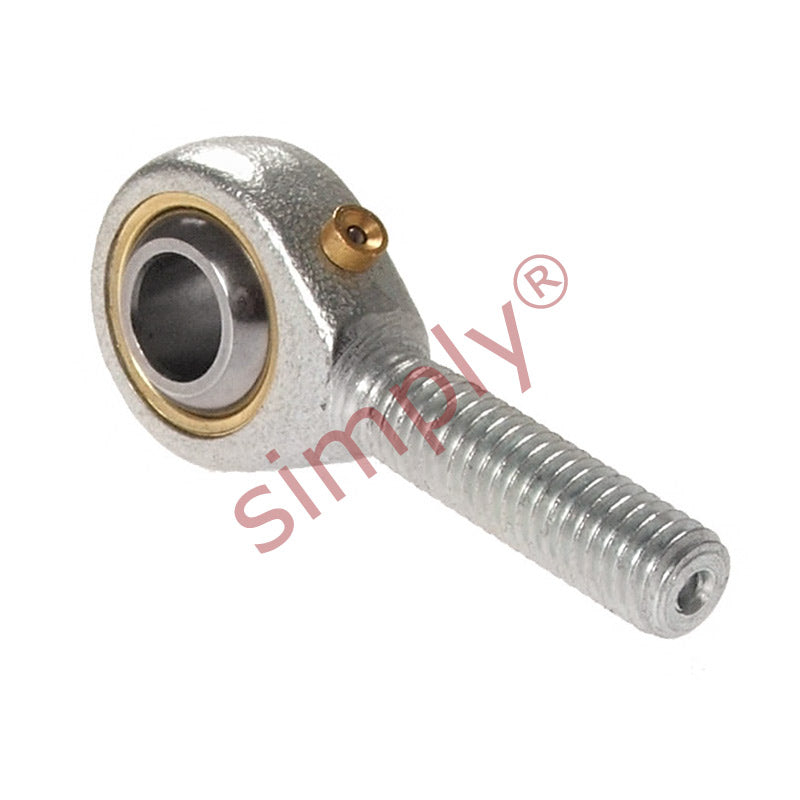

• Budget POS20 Right Hand Steel / Bronze Lined Plain Male Rod End 20mm Bore M20x1.5 Thread
1 1

SKU: POS20.EU

Budget POS20 Right Hand Steel / Bronze Lined Plain Male Rod End 20mm Bore M20x1.5 Thread

Budget POS20 Right Hand Steel / Bronze Lined Plain Male Rod End 20mm Bore M20x1.5 Thread
$20.28 ex VAT
$20.28 ex VAT
Sale Sold out

Equivalent to: GAKFR20PB SAKAC20M SM20 MB-M20

In stock

Price Break
10+ $13.58
19+ $12.82
29+ $12.67
39+ $12.51
49+ $12.36
74+ $12.21
99+ $11.45
199+ $11.29
249+ $11.14
499+ $10.99
999+ $10.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M20x1.5
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
20mm
Material:
Bronze Lined
Technical
d 20mm
B 25mm
r1 0.6mm
C1 18mm
d1 max 24.3mm
d2 46mm
d3 M20x1.5
h 78mm
l1 47mm
l2 101mm
Ball diameter 1-3/8 inch
Dynamic load Cr 31.4 kN
Static load Cor 36.2 kN
Max angle α 14
Weight 0.34 kg
