• Budget POS20L Left Hand Steel / Bronze Lined Plain Male Rod End 20mm Bore M20x1.5 Thread
1 1

SKU: POS20L.EU

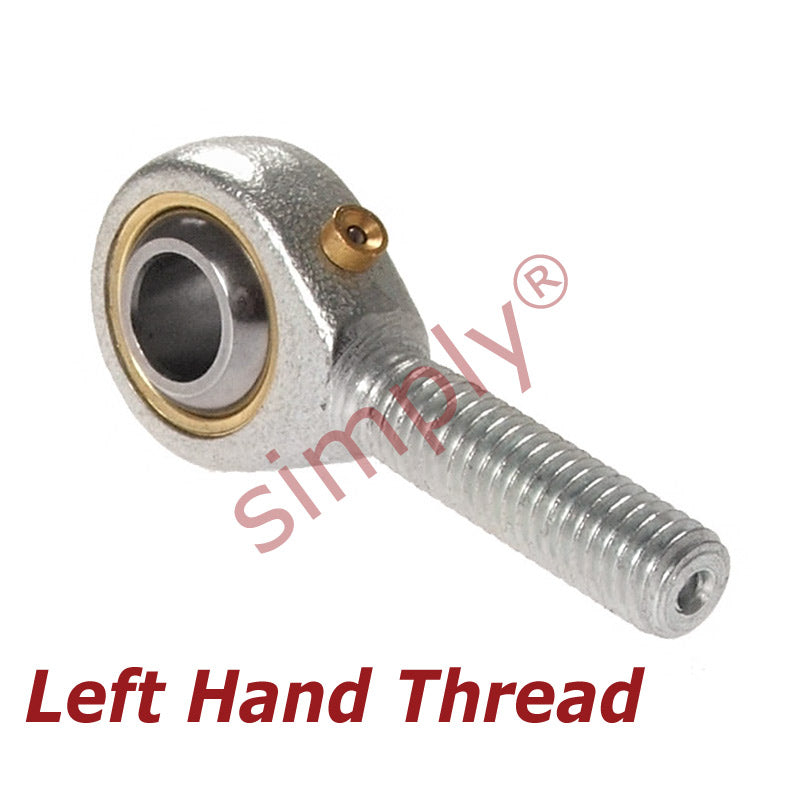

Budget POS20L Left Hand Steel / Bronze Lined Plain Male Rod End 20mm Bore M20x1.5 Thread

Budget POS20L Left Hand Steel / Bronze Lined Plain Male Rod End 20mm Bore M20x1.5 Thread
$21.29 ex VAT
$21.29 ex VAT
Sale Sold out

Equivalent to: SALKAC20M MBL-M20

In stock

Price Break
10+ $14.26
19+ $13.46
29+ $13.30
39+ $13.14
49+ $12.98
74+ $12.82
99+ $12.02
199+ $11.86
249+ $11.70
499+ $11.54
999+ $11.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M20x1.5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
20mm
Material:
Bronze Lined
Technical
d 20mm
B 25mm
r1 0.6mm
C1 18mm
d1 max 24.3mm
d2 46mm
d3 M20x1.5
h 78mm
l1 47mm
l2 101mm
Ball diameter 1-3/8 inch
Dynamic load Cr 31.4 kN
Static load Cor 36.2 kN
Max angle α 14
Weight 0.34 kg
